Hi,
I had some problems with showing the annotations texts. I've already tried to modify it from the settiings but nothing appears in the model layout. I want it to appear with arrows and text above, but instead it just gives me a line. I made a screenshot in which the annotate line is highlighted. Please help.
Coucou
Are you sure you have an arrow in the dimension style ? as this picture shows it
amicalement
there are a couple things that may be the cause.
To me it kinda looks like the annotations are there but just to small.

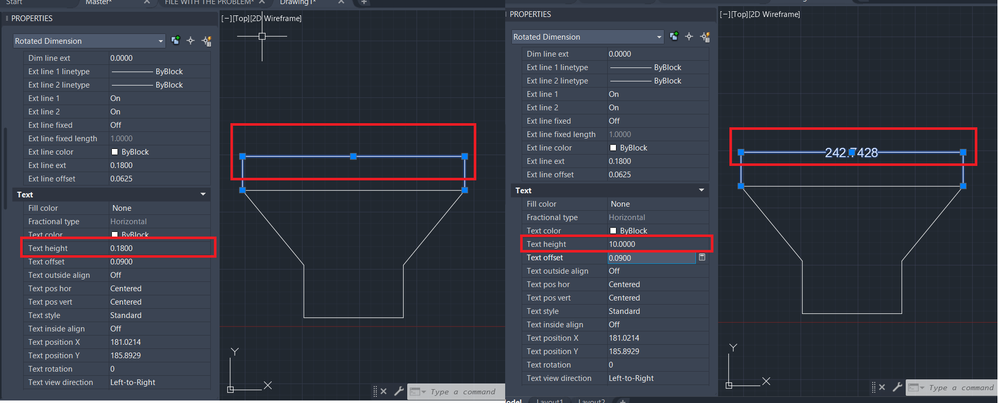

in the properties palette change the text height to something bigger. If the text shows up you need to change the text height in the dimension style you use (or just change them all in the properties palette). If it work you can also change the arrow size in the palette as well.
