Adding dimensions to imported 3D models

[Anonymous]

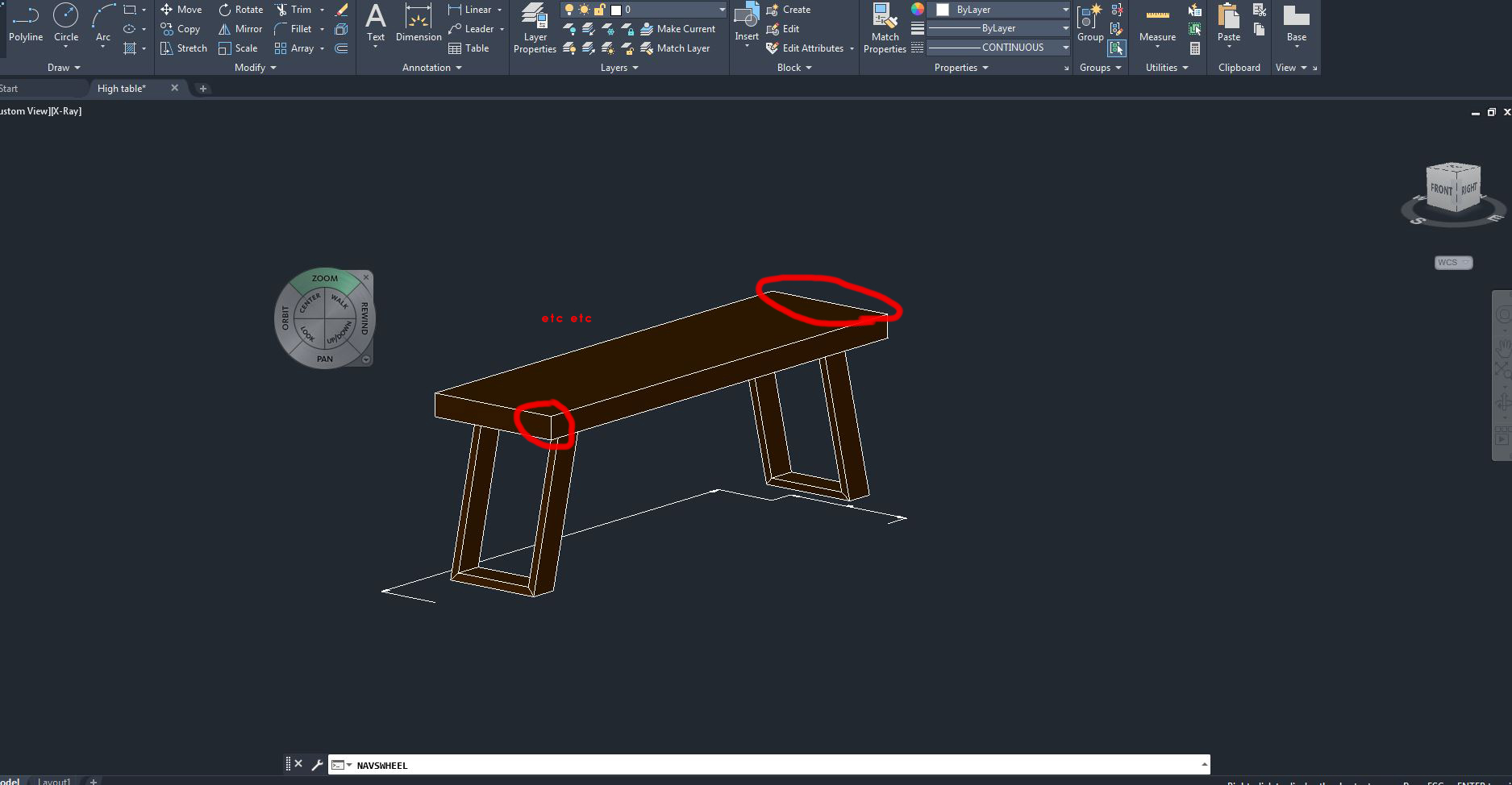

Hi all. I am trying to add dimensions to an imported 3D model (from cinema 4D) but the dimensions are all ground level on all axis. Is there a way this can be solved? Any help will be greatly  appreciated. Regards

[Thomas_Stuehle]

Hello @Anonymous

Welcome to the AutoCAD forum.

On my side the following steps work when a dimension is created on Z=0 from the top view.

1. Change the view via viewcube to a different 3D angle

2. Enter MOVE command

3. Select the dimension object

4. Lift the dimension object to a certain z value.

Did the post help you and answered your question?

If yes, feel free to click on the button "Mark as Solution". Thus also other users can benefit from the information. In case you still need help please feel free to provide an update here so we as Community know how we can help you best moving forward.

Best regards,

Thomas

[imadHabash]

Hi,

try first to  UCS command >> Face ( F ) , after selecting your needed face on your model to align your ucs to the face that you want to dim. make your dimension now .

[Anonymous]

Hi Imad, Thanks, I will give it a try and let you know how I get on.

Thanks again

[Anonymous]

Hi Thomas, Thanks for your reply and help. I'll give it a go and see. Thank you

[Anonymous]

@imadHabash Hello again Imad, thanks for your response yesterday. Much appreciated. I don't use AutoCAD that often so I'm a bit clueless 🙂

I can't see where you are clicking on the drop down in the GIF you so kindly showed.

Can you please tell me on what you click?

Thank you so much

[imadHabash · Accepted solution]

>> I can't see where you are clicking on the drop down in the GIF you so kindly showed.

Dimension tab >> Linear .
