AutoCAD quasar for Mac - Isometric drawing with wrong dimension degree

[Anonymous]

I am doing Isometric drawing, using Auto CAD quasar for mac.

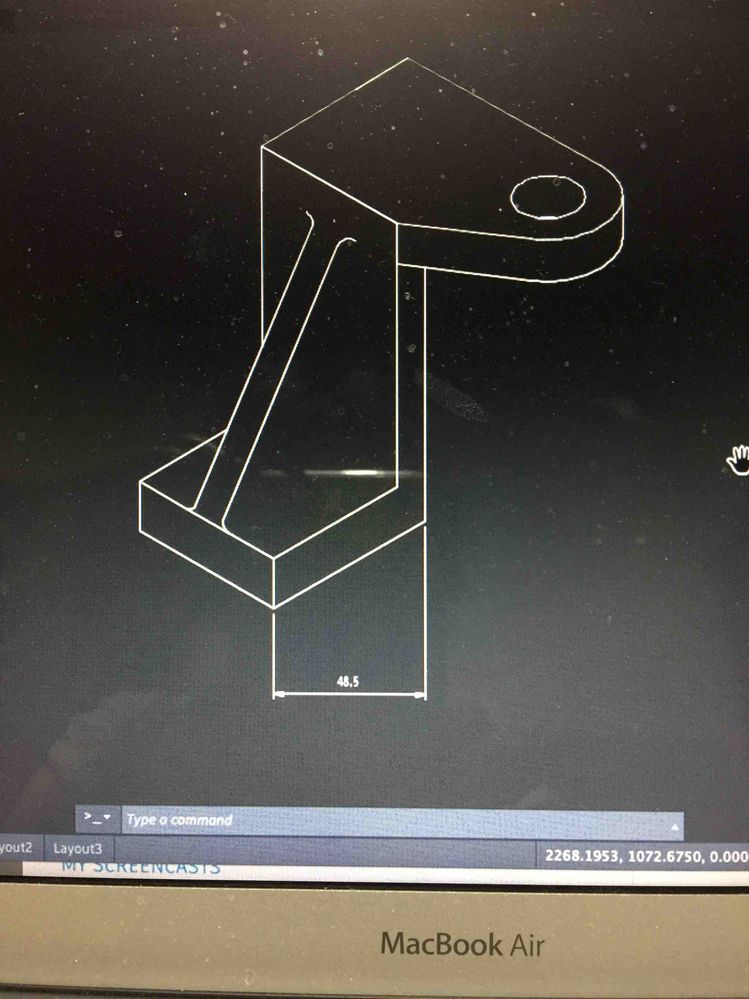

The drawing is good in 30-degree position, however, when I use dimension for measurements, it turned out to be 90-degree, display and measurements are completely wrong.

Please help, please provide detailed instruction to fix up this problem, thank you.

Sue



[maxim_k]

Hi Xiu Yan Xu,

There are a lot of tutorials / information about this over Internet. You can look here:

https://www.youtube.com/watch?v=aQhiBlzKiRg

https://forums.autodesk.com/t5/autocad-forum/dimensioning-a-2d-isometric-drawing/td-p/5813190

https://www.neit.edu/blog/index.php/2015/09/autocad-placing-your-dimensions-and-text-on-the-right-an...

https://www.cadforum.cz/cadforum_en/isometric-dimensions-in-a-2d-drawing-tip7931

The information is about AutoCAD for Windows, but general concept is the same in AutoCAD for Mac.
