i want to use a 2 or 3 position selector switch but i cant find any selector switch in icon menu....my icon menu only has selectors with one contact..i want to make a selector like this image...plz quide me...
.
how to create IEC selector switches in Autocad electrical??
I find the problem with the standard symbols for selector switches is that if you have contacts closed in more than one position, you have trouble showing it.
I use the AS standard which is based on the IEC standard and created my own symbols for selector switches.
The attached ZIP holds the blocks I use for selector switches. They allow infinite combinations while showing what pocitions the particular contact is in.

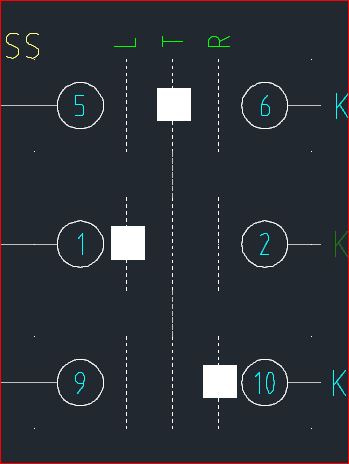

The picture shows a Local/Test/Remote switch we use in a HV CB control panel.
Closed positions are shown by the block while the open position shows as the dotted line.
If required, the contacts could have had 2 positions closed as shown in the next picture of a different switch's XREF table.
Regards Brad
>
Brad Coleman, Electrical Draftsman
