ACA Roof Hatch

[Jake_CAD]

Is there a way to get the roof surfaces to show as hatched in plan without converting the Roof element to Roof Slabs?

[R_Tweed · Accepted solution]

I may be backwards on this..

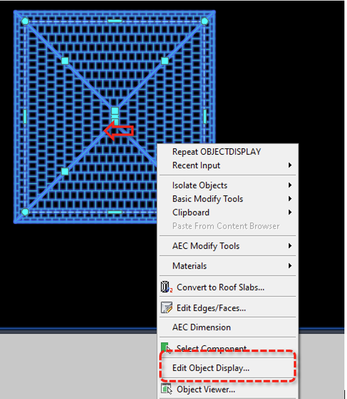

1. Edit object display and a roof material.

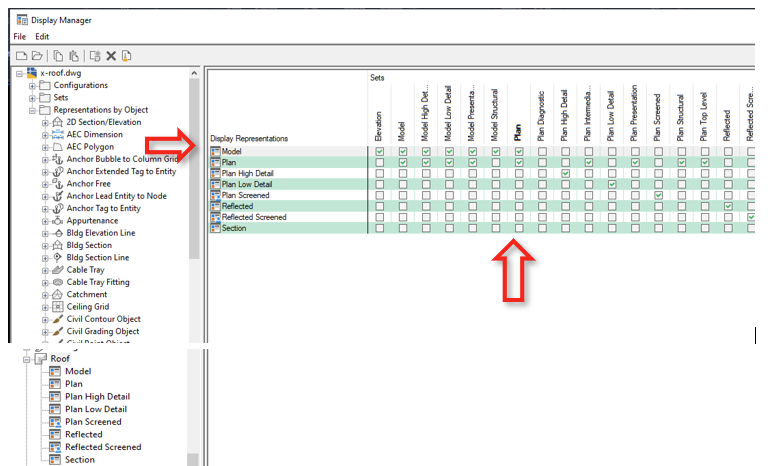

2. Goto display manager and add model as a display representation for plan.

Match properties can be used to update or add material properties to additional roofs.

[Jake_CAD]

@R_Tweed Thank you! 🙂
