GA Drawing with Assembly Labels

[bakalov.ivaylo]

    Hello,

    I'm trying to generate a General Drawing that are showing my whole model with labels of all assemblies. Can this kind of drawing be done automatically(showing all assembly labels)?

    Thank you for your support in advance!

    Regards,

    Ivaylo

[S.MANICKAVASAGAM]

Dear,

        In drawing style, object presentation for main part mark set to assembly mark.

[Sebastian_Eiche]

Which version and installation (INT, UK...) do you use?
It's not always necessary to change a detail style, in some versions this is included.

[bakalov.ivaylo]

@Sebastian_Eiche Hi Sebastian, I'm using Advance Steel 2021 INT and I cannot find such view included.

@S.MANICKAVASAGAM  Thank you that works for the main view.

Can I make section views from the main view with the same settings? Please, see the pictures below:

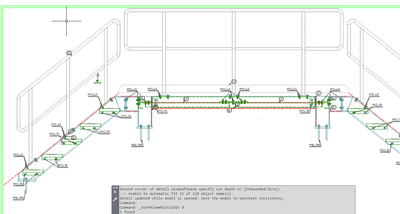

This is the main view made according to MANICKAVASAGAMS advice and it is OK:

But we I make section view it gives part labels, not assembly labels. How I can fix that?:

So, my qestion is: Can I make section view with the same settings for labels as my main view.

Thank you in advance and have a great day!

Regards,

Ivaylo

[Sebastian_Eiche · Accepted solution]

The only thing you had to know: the changings of detail styles is not really easy because all changes are very deep and could destroy many.

But if you already did it, you also use the same detailstyle for your cutview. If your start the command just press on 'settings' in the command line and then you could choose your detail style (which you already changed) from the user section

[S.MANICKAVASAGAM · Accepted solution]

@bakalov.ivaylo

         Hi,



[bakalov.ivaylo]

Thank you for the help both.

@Sebastian_Eiche I'm trying not to change the detail styles(I'm coping and editing), but thank you for advice.

Have a great week ahead!

Thanks and regards,

Ivaylo
