I have tried this and the additional attributes are visible in C3D but the SDF export seems to ignore them. The lines below show the data I am tryingto work with - there are more fields in the full dataset but these are the main ones of interest at the moment

#Pt E N Name Description Region 1 278200 647200 Canderigg Lochhead/Broomfield Sth. Lanarks 2 279100 648700 Woodside Colliery   Sth. Lanarks 3 297900 689000 Bogside Mine   West Fife 4 347300 709200 Highham Farm Radernie East Fife 5 280000 645700 East Draffan   Sth. Lanarks

[#2]

---

neilyj wrote:

I have tried this and the additional attributes are visible in C3D but the SDF export seems to ignore them. The lines below show the data I am tryingto work with - there are more fields in the full dataset but these are the main ones of interest at the moment

#Pt E N Name Description Region 1 278200 647200 Canderigg Lochhead/Broomfield Sth. Lanarks 2 279100 648700 Woodside Colliery   Sth. Lanarks 3 297900 689000 Bogside Mine   West Fife 4 347300 709200 Highham Farm Radernie East Fife 5 280000 645700 East Draffan   Sth. Lanarks

---

I'll tinker with it later today, got some boats engines to get running first.

[#3]

Neily,

I was able to connect to your data via FDO ODBC to Excel.

I've got the current 64-bit Access ODBC driver and 32-bit Office 2007.

From Excel - highlight all of your data & set up a "named range"

From the ODBC data sources in Control Panel, Create a DSN to the Excel workbook.

From Data Connect in Map/C3D, select the DSN from a FDO to ODBC.

You should see the named range & X/Y/Z columns - select your easting & northing & points should come into the  workspace.

Update if you need more help...  I didn't have to modify anything you posted  regarding characters...

Best of Luck!

[#4]

Thanks for trying the odbc method - but this will mean an uninstall and reinstall of office 2007 which I'd prefer to avoid if at all possible

[#5]

You are correct.  However, when I uninstalled Office  I was prepared with backing up all of my email/info to a .pst and thought I'd have to reload all of my messages/notes/calendar from it.  Turned out not to be the case - everything was "as-is" prior to the installation.  Dunno if this is because we're on a MS Exchange server, or if some of the settings are retained in the registry (or elsewhere) even with the uninstall (maybe uninstall not complete/clean???)  Won't promise it would be the same for you, but was less painful that monkeying around with a VM..... the only other alternative I could think of for you.

[#6 · Accepted solution]

1. Get your pure data



2. Insert the data to your favorite spreadsheet (in this description I use Microsoft Excel)



3. Save your pure data to the CSV file called CSV (Comma delimited) but notice that you get a semicolon separator ( ; )



4. Create a new Point File Format in Autodesk Civil 3D and call it e.g. PEN(semicolon) with settings:
- Default file extension .csv
- Comment Tag #
- Format options Delimited by ;

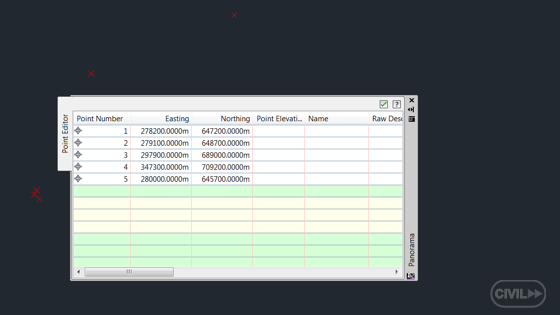

5. Import the points to Autodesk Civil 3D from your CSV file



6. Choose Output and Export Civil Object to SDF Set your coordinate system in this example Arbitrary X-Y Coordinates (XY-BC) is used

7. Change the workspace to Autodesk Map 3D (Planning and Analysis)

8. Type a MAPWSPACE command and choose On

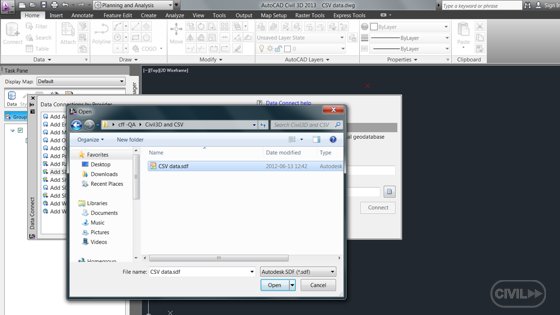

9. Connect to the SDF file



10. Choose Points data from Civil_Schema and press Add to Map
11. The Data Table is empty



12. Export Layer Data to SQLite





13. Open the Mozilla Firefox browser
14. Install Extension called SQLite Manager from Mozilla Add-Ons

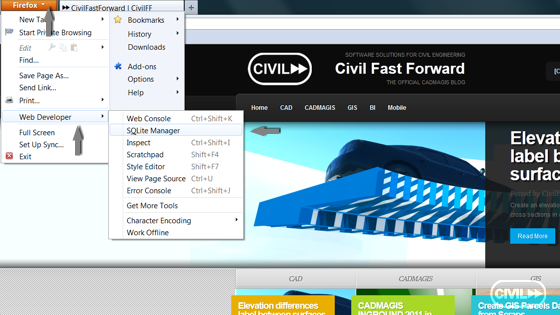

15. From the Mozilla Firefox browser choose Web Developer and open SQLite Manager

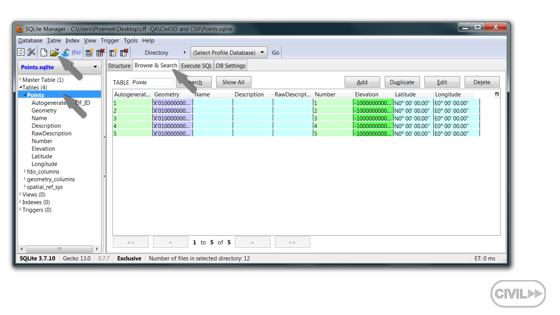

16. Open the SQLite Points base exported by Autodesk Map 3D



17. Open the table called Points, select Stucture and copy the statement (mentioned below) to the notepad for future reuse in next steps:

CREATE TABLE "Points" ("Autogenerated_SDF_ID" INTEGER PRIMARY KEY, "Geometry" BLOB, "Name" TEXT, "Description" TEXT, "RawDescription" TEXT, "Number" INTEGER, "Elevation" REAL, "Latitude" TEXT, "Longitude" TEXT)



18. Select Points, choose Export Table and export the data to the CSV file Select the checkboxes: First row contains column names and Fields separated by Semicolon ( ; )



19. Select the exported Points table and delete it



20. Open the exported Points table form the CSV file format in Microsoft Excel



21. Change the column names and copy your data to these empty columns from the pure data CSV file



22. Save the edited CSV file as the CSV format file

23. Go back to SQLite Manager and import the edited CSV file
- Select First row containing column names
- Select Fields separated by Semicolon ( ; )

24. Set types of data for all columns from the information that you have saved in the notepad:
Autogenerated_SDF_ID -> INTEGER
Geometry - > BLOB
Name - > TEXT
… etc.



25. Save and Close SQLite Manager



26. Go Back to Autodesk Map 3D and connect to the re-edited SQLite database
27. Select Points and Add to Map

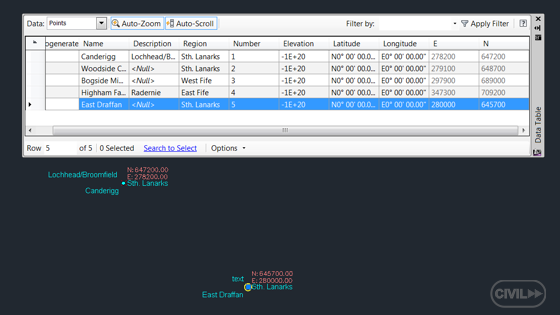

28. Finally you will get your points from Civil 3D with data from the CSV table, other words you have just inserted all pure data



If you check the result - geometry matches the description.

[#7]

CivilFF - Thanks for taking the time to produce the instructions and screen shots, I'll give it a try and see if I can get it to work.

Incidentally, it seems like we have to jump through several hoops to get any useful data exchange between Map and C3D - it really shouldn't be this involved should it??

[#8]

Just worked through this and it worked like a charm - it's not a procedure you just stumble upon though....!!!!
