volume with calculation from multiple objects selected

[SinCity_XTRM]

Hi everyone,

Im quite new at creating lisps, but my first one is already kicking my butt. Heres what I want the lisp to function, and hopefully someone can help me write this up. Thanks in advance.

I would like to be able to select multiple 3DSolid objects and have it calculate the total Linear Footage. In my mind, this is how the workflow would go?

1. i have 3 objects i will be selecting

    1. 2 x 2 x 12

    2. 2 x 2 x 24

    3. 2 x 2 x 36

2. freeze all layers but the layer my solids are on.

3. enter lisp command to calculate

4. window select all the solids i wish to calculate

5. lisp grabs the volume result of 288

6. cmd line asks me for the "width 1" of tube - i would enter a value of 2

7. cmd line asks me for the "width 2" of tube - i would enter a value of 2

8. lisp has some formula like:   (288/(2*2))/12

9. an alert window pops up informing me the result is " 2in x 2in x 6LnFt "

10. I then become a happy camper.....

attached is a pic of my thought.

[ronjonp]

Why do you need input if you're selecting a solid?

Here's a quick example 🙂

(defun c:foo (/ a b o r s v)
  ;; RJP » 2021-04-08
  (if (setq s (ssget '((0 . "3DSOLID"))))
    (progn (foreach e (vl-remove-if 'listp (mapcar 'cadr (ssnamex s)))
	     (vla-getboundingbox (setq o (vlax-ename->vla-object e)) 'a 'b)
	     (mapcar 'set '(a b) (mapcar 'vlax-safearray->list (list a b)))
	     (setq r (cons (vl-sort (mapcar 'abs (mapcar '- a b)) '>) r))
	     (setq v (cons (vla-get-volume o) v))
	   )
	   ;; Check that the tubes are all the same size
	   (if (and (apply '= (mapcar 'cadr r)) (apply '= (mapcar 'caddr r)))
	     (alert (strcat (vl-princ-to-string (cadr (setq b (car r))))
			    " x "
			    (vl-princ-to-string (caddr b))
			    " x "
			    (vl-princ-to-string (apply '+ (mapcar 'car r)))
			    "LnFt\nTotal Volume = "
			    (vl-princ-to-string (apply '+ v))
		    )
	     )
	     (alert "Tubes selected vary in size!!")
	   )
    )
  )
  (princ)
)

[Sea-Haven]

Like  ronjonp a simple example

(defun c:test ( / obj x y z pointmin pointmax vol )
(setq obj (vlax-ename->vla-object (car (entsel "pick object "))))

(vla-GetBoundingBox obj 'minpoint 'maxpoint)
(setq pointmin (vlax-safearray->list minpoint))
(setq pointmax (vlax-safearray->list maxpoint))
;minpoint contains the minimum point of the bounding box
;maxpoint contains the maximum point of the bounding box

(setq x (abs (- (car pointmin)(car pointmax))))
(setq y (abs (- (cadr pointmin)(cadr pointmax))))
(setq Z (abs (- (caddr pointmin)(caddr pointmax))))

(setq vol (* x y z))

(if (< x y)
  (progn
    (setq temp x)
    (setq x y)
    (setq y temp)
  )
)

(alert (strcat "Volume is " (rtos vol 2 2) "\nLength is " (rtos x 2 2) "\nWidth is " (rtos y 2 2) "\nHeight is " (rtos z 2 2)))

[3wood]

If the length of the 3dSoild is not parallel to current UCS, the result is wrong.

[Sea-Haven]

Maybe look at massprop rotated rectang.

Bounding Box:
Lower Bound: X= 234.772 Y= 143.5391 Z= 0
Upper Bound: X= 238.618 Y= 145.9988 Z= 10
Centroid: X= 236.695 Y= 144.769 Z= 5

Have to put the thinking cap on convert back to X Y Z

[3wood]

I guess for rotated 3dSolid, it may require "fit testing" for find out an angle which provides the largest distance between 2 bounding box points.

[Sea-Haven]

If you dump the object

PrincipalDirections (RO) = (1.0 0.0 0.0 0.0 1.0 0.0 0.0 0.0 1.0) this is ortho

PrincipalDirections (RO) = (0.894427190999919 0.447213595499952 0.0 -0.447213595499952 0.894427190999919 0.0 0.0 0.0 1.0) this is rotated so if could rotate back to 0 0 1 then do bounding box.

[Sea-Haven]

Found it this is angle of solid if not 0. in radians.

(setq ang (- (/ pi 2) (atan (/ 0.894427190999919 0.447213595499952))))

Only issue is cw or ccw, realised the second value is positive or negative.

(setq ang (+ (* 1.5 pi)(abs (atan (/ 0.964763821237727 -0.263117405792126))))

Needs more testing.

[doaiena]

Working with 3dSolids can be a bit tricky, especially if they get more complex.

If we are strictly talking about a solid of the type "BOX", the most straight forward approach would be to read its length/width/height properties.

If the solid type is unknown, a bounding box approach may do the job, but in order to work, the solid must be aligned to the WCS before we measure it. PrincipalDirections is not always a reliable source of information, on how to align the solid, depending on how the solid was created/edited. To be certain of the alignment, you could add vector information to the solid manually, which would correspond to its L/W/H dimensions and use that info to do the realignment.

Another approach, that would be harder to implement and will run slow is to extract the entity data and decode it. Then you could analyze the solid in place, without the need to align it to WCS.

And the last, but most powerful way to collect 3dSolid data is a few lines of code in .NET. That would open the door to analyze complex solids, irrespective of orientation.

[ronjonp]

@3wood  Very true ..

[SinCity_XTRM]

this sounds like its a tricky request.

@ronjonp came very close to what im thinking. though like @3wood noticed, it wont recognize solids that are not parallel to a UCS. or it doesnt recognize curved solids either.

@Sea-Haven i couldnt seem to get your example to run.??

this is why in my original post, im thinking that the command line can prompt the user to ask for the width & height of the solids. that way a calculation can be done with that info with the volume info. this way, solids that are rotated and even curved can be  counted in the final result.

and perhaps with some extra input from the user when prompted, with the volume info, we can have weight listed too in the alert..... just a thought.

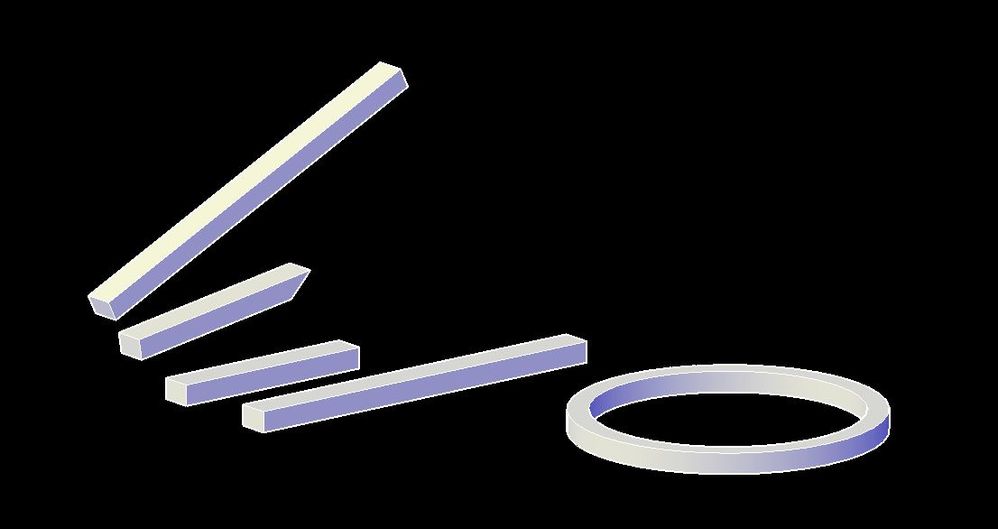

in my pic, is an example of the various types of solids that i would wish to select.

[ronjonp · Accepted solution]

@SinCity_XTRM

Try this:

(defun c:foo (/ d1 d2 m s v)
  ;; RJP » 2021-04-12
  (if (and (setq d1 (getdist "\nEnter first width: "))
	   (setq d2 (getdist "\nEnter second width: "))
	   (setq s (ssget '((0 . "3DSOLID"))))
	   (setq v 0)
      )
    (progn (foreach e (vl-remove-if 'listp (mapcar 'cadr (ssnamex s)))
	     (setq v (+ v (vla-get-volume (vlax-ename->vla-object e))))
	   )
	   (alert (setq	m (strcat (vl-princ-to-string d1)
				  " x "
				  (vl-princ-to-string d2)
				  " x "
				  (vl-princ-to-string (/ v (* d1 d2)))
				  " LnFt\n\nVolume: "
				  (vl-princ-to-string v)
			  )
		  )
	   )
      (princ m)
    )
  )
  (princ)
)

[Kent1Cooper]

---

@SinCity_XTRM wrote:

.... im thinking that the command line can prompt the user to ask for the width & height of the solids. that way a calculation can be done with that info with the volume info. this way, solids that are rotated and even curved can be  counted in the final result.

....

---

So for the one with an end that is not perpendicular to the length:

if a routine divides the Volume property by the height and width, the result will be the length to the mid-line of that slanted end, halfway between the lengths of the top and bottom surfaces.  Is that appropriate?  Or would you want the greatest-extent length [here, the length along the top surface]?  Or maybe the bottom surface?  Not that I have an idea of how to calculate those, but....

[SinCity_XTRM]

this is it!!!!!

thank you so much! i did however modify the calculation slightly so the end value was in feet instead of inches. and, i was also able to use this similar lisp to use a different calculation to do round tubing...  I'm going to try and evaluate this whole thing and see if im able to remove one of the prompt questions for "width 2" as its no longer needed.

thanks so much!!!!!!!!!!!!!!

square tube modification:

(vl-princ-to-string (/ (/ v (* d1 d2)) 12))

round tube modification:

(vl-princ-to-string (/ (/ v (* 3.14 (/ d1 2)(/ d1 2))) 12))

[ronjonp]

Glad to help .. let me know if you need more help with the modifications. 🍻

[SinCity_XTRM]

this would be appropiate. im going to use this lisp for material ordering. so i'll take that value and add a % to it anyways for the cutting etc.

[devitg]

@SinCity_XTRM

---

@SinCity_XTRM wrote:

this is it!!!!!

thank you so much! i did however modify the calculation slightly so the end value was in feet instead of inches. and, i was also able to use this similar lisp to use a different calculation to do round tubing...  I'm going to try and evaluate this whole thing and see if im able to remove one of the prompt questions for "width 2" as its no longer needed.

thanks so much!!!!!!!!!!!!!!

square tube modification:

(vl-princ-to-string (/ (/ v (* d1 d2)) 12))

round tube modification:

(vl-princ-to-string (/ (/ v (* 3.14 (/ d1 2)(/ d1 2))) 12))

---

(and (setq d1 (getdist "\nEnter first width: "))
	   (setq d2 d1 )); change to it
	   (setq s (ssget '((0 . "3DSOLID"))))
	   (setq v 0)
      )
