Hi,
It suppose to be like this code :
;;--------------------=={ Object Align }==--------------------;;
;; ;;
;; This program will enable the user to dynamically align a ;;
;; selection of objects to a selected curve, with intuitive ;;
;; placement controls. ;;
;; ;;
;; Upon starting the program with the command syntax 'OA', ;;
;; the user is prompted to make a selection of objects to ;;
;; be aligned. Following a valid selection, the user is ;;
;; prompted to specify a base point to use during alignment; ;;
;; at this prompt, the program will use the center of the ;;
;; bounding box of the selection of objects by default. ;;
;; ;;
;; The user is then prompted to select a curve object ;;
;; (this may be a Line, Polyline, Arc, Circle, Ellipse, ;;
;; XLine, Spline etc.) to which the objects are to be ;;
;; aligned. The selected curve may be a primary object, or ;;
;; nested with a Block or XRef to any level. After ;;
;; selection, the program offers several controls to aid ;;
;; with object placement displayed at the command line: ;;
;; ;;
;; [+/-] for [O]ffset | [</>] for [R]otation | <[E]xit>: ;;
;; ;;
;; The offset of the objects from the curve may be ;;
;; controlled incrementally by a tenth of the object height ;;
;; using the '+' / '-' keys, or a specific offset may be ;;
;; entered upon pressing the 'O' or 'o' key. ;;
;; ;;
;; The set of objects may be rotated anti-clockwise or ;;
;; clockwise by 45 degrees relative to the curve by pressing ;;
;; the '<' or '>' keys respectively; alternatively, the user ;;
;; may enter a specific rotation by pressing the 'R' or 'r' ;;
;; key. ;;
;; ;;
;; Finally, the user may place the objects and exit the ;;
;; program by either clicking the left or right mouse ;;
;; buttons, pressing Enter or Space, or by pressing the 'E' ;;
;; or 'e' keys. ;;
;; ;;
;; The program should perform successfully in all UCS & ;;
;; Views, and in all versions of AutoCAD that have Visual ;;
;; LISP functions available (AutoCAD 2000 onwards). ;;
;; ;;
;;------------------------------------------------------------;;
;; Author: Lee Mac, Copyright © 2012 - www.lee-mac.com ;;
;;------------------------------------------------------------;;
;; Version 1.3 - 14-12-2012 ;;
;;------------------------------------------------------------;;
(defun c:oa
(
/
*error*
_copynested
_curveobject-p
_fixdxfdata
_locked-p
_selectif
bb1 bb2 blk bnm bpt
def dis
enl ent
fac
gr1 gr2
inc
llp lst
mat msg
nrm
obj
pi2 pt1 pt2
sel
tmp
urp uxa
)
(defun *error* ( msg )
(if (and
(= 'list (type mat))
(= 'ename (type ent))
)
(entdel ent)
)
(if (and (= 'vla-object (type blk)) (not (vlax-erased-p blk)))
(vl-catch-all-apply 'vla-delete (list blk))
)
(if (and (= 'vla-object (type def)) (not (vlax-erased-p def)))
(vl-catch-all-apply 'vla-delete (list def))
)
(foreach obj lst
(if (not (vlax-erased-p obj))
(vl-catch-all-apply 'vla-delete (list obj))
)
)
(LM:endundo (LM:acdoc))
(if (and msg (not (wcmatch (strcase msg) "*BREAK,*CANCEL*,*EXIT*")))
(princ (strcat "\nError: " msg))
)
(princ)
)
(defun _curveobject-p ( ent )
(null
(vl-catch-all-error-p
(vl-catch-all-apply 'vlax-curve-getendparam (list ent))
)
)
)
(defun _fixdxfdata ( elst )
(vl-remove-if '(lambda ( pair ) (member (car pair) '(5 6 8 102 330))) elst)
)
(defun _copynested ( ent mat / enx )
(if
(setq ent
(cond
( (= "VERTEX" (cdr (assoc 0 (setq enx (entget ent)))))
(entmakex (_fixdxfdata (entget (setq ent (cdr (assoc 330 enx))))))
(setq ent (entnext ent)
enx (entget ent)
)
(while (/= "SEQEND" (cdr (assoc 0 enx)))
(entmakex (_fixdxfdata enx))
(setq ent (entnext ent)
enx (entget ent)
)
)
(cdr (assoc 330 (entget (entmakex (_fixdxfdata enx)))))
)
( (entmakex (_fixdxfdata enx)) )
)
)
(if mat (vla-transformby (vlax-ename->vla-object ent) (vlax-tmatrix mat)))
)
ent
)
(defun _selectif ( msg pred )
(
(lambda ( pred / sel )
(while
(progn (setvar 'errno 0) (setq sel (nentselp msg))
(cond
( (= 7 (getvar 'errno))
(princ "\nMissed, try again.")
)
( (= 'ename (type (car sel)))
(if (null (pred (car sel)))
(princ "\nInvalid Object Selected.")
)
)
)
)
)
sel
)
(eval pred)
)
)
(defun _locked-p ( layer )
(= 4 (logand 4 (cdr (assoc 70 (tblsearch "LAYER" layer)))))
)
(if (null oa|rot)
(setq oa|rot 0.0)
)
(if (null oa|off)
(setq oa|off 0.0)
)
(cond
( (or
(_locked-p (getvar 'clayer))
(_locked-p "0")
)
(princ "\nCurrent Layer or Layer \"0\" locked.")
)
( (null (setq sel (LM:ssget "\nSelect Objects to Align: " '("_:L" ((0 . "~VIEWPORT"))))))
(princ "\n*Cancel*")
)
( (progn
(setq mat
(vlax-tmatrix
(append
(mapcar
'(lambda ( a b ) (append (trans a 1 0 t) (list b)))
'(
(1.0 0.0 0.0)
(0.0 1.0 0.0)
(0.0 0.0 1.0)
)
(trans '(0.0 0.0 0.0) 0 1)
)
'((0.0 0.0 0.0 1.0))
)
)
)
(LM:startundo (LM:acdoc))
(repeat (setq inc (sslength sel))
(setq obj (vla-copy (vlax-ename->vla-object (ssname sel (setq inc (1- inc)))))
lst (cons obj lst)
)
(vla-transformby obj mat)
(if (and (vlax-method-applicable-p obj 'getboundingbox)
(not
(vl-catch-all-error-p
(vl-catch-all-apply 'vla-getboundingbox (list obj 'llp 'urp))
)
)
)
(setq bb1 (cons (vlax-safearray->list llp) bb1)
bb2 (cons (vlax-safearray->list urp) bb2)
)
)
(vla-put-visible obj :vlax-false)
)
(setq bb1 (apply 'mapcar (cons 'min bb1))
bb2 (apply 'mapcar (cons 'max bb2))
)
(cond
( (setq bpt (getpoint "\nSpecify Base Point <Center>: "))
(setq bpt (trans bpt 1 0))
)
( (setq bpt (mapcar (function (lambda ( a b ) (/ (+ a b) 2.0))) bb1 bb2)))
)
(null
(setq enl
(_selectif "\nSelect Curve: "
(function
(lambda ( x )
(or (= "VERTEX" (cdr (assoc 0 (entget x)))) (_curveobject-p x))
)
)
)
)
)
)
(*error* nil)
)
( (not
(or
(and
(setq mat (caddr enl))
(setq ent (_copynested (car enl) mat))
)
(and
(= "VERTEX" (cdr (assoc 0 (entget (car enl)))))
(setq ent (cdr (assoc 330 (entget (car enl)))))
)
(setq ent (car enl))
)
)
(*error* nil)
(princ "\nUnable to Recreate Nested Entity.")
)
( t
(setq pt1 (cadr (grread t 9))
fac (/ (- (cadr bb2) (cadr bb1)) 2.0)
nrm (trans '(0.0 0.0 1.0) 1 0 t)
uxa (angle '(0.0 0.0 0.0) (trans (getvar 'ucsxdir) 0 nrm t))
pi2 (/ pi -2.0)
)
(setq inc 0)
(while (tblsearch "BLOCK" (setq bnm (strcat "$tmp" (itoa (setq inc (1+ inc)))))))
(foreach obj lst (vla-put-visible obj :vlax-true))
(vla-copyobjects (LM:acdoc)
(vlax-make-variant
(vlax-safearray-fill
(vlax-make-safearray vlax-vbobject (cons 0 (1- (length lst))))
lst
)
)
(setq def (vla-add (vla-get-blocks (LM:acdoc)) (vlax-3D-point bpt) bnm))
)
(foreach obj lst (vla-delete obj))
(setq lst nil)
(setq blk
(vla-insertblock
(vlax-get-property (LM:acdoc) (if (= 1 (getvar 'cvport)) 'paperspace 'modelspace))
(vlax-3D-point (trans pt1 1 0))
bnm
1.0 1.0 1.0 0.0
)
)
(vla-put-layer blk "0")
(vla-put-normal blk (vlax-3D-point nrm))
(setq msg (princ "\n[+/-] for [O]ffset | [</>] for [R]otation | <[E]xit>: "))
(while
(progn
(setq gr1 (grread t 15 0)
gr2 (cadr gr1)
gr1 (car gr1)
)
(cond
( (member gr1 '(3 5))
(setq pt2 (trans gr2 1 0)
pt1 (vlax-curve-getclosestpointto ent pt2)
)
(if (not (equal pt1 pt2 1e-8))
(progn
(setq dis (/ (* fac oa|off) (distance pt1 pt2)))
(vla-put-insertionpoint blk (vlax-3D-point (mapcar '(lambda ( a b ) (+ a (* (- b a) dis))) pt1 pt2)))
(vla-put-rotation blk (+ (angle (trans pt1 0 1) gr2) uxa oa|rot pi2))
)
)
(= 5 gr1)
)
( (= 2 gr1)
(cond
( (member gr2 '(043 061))
(setq oa|off (+ oa|off 0.1))
)
( (member gr2 '(045 095))
(setq oa|off (- oa|off 0.1))
)
( (member gr2 '(044 060))
(setq oa|rot (+ oa|rot (/ pi 4.0)))
)
( (member gr2 '(046 062))
(setq oa|rot (- oa|rot (/ pi 4.0)))
)
( (member gr2 '(013 032 069 101))
nil
)
( (member gr2 '(082 114))
(if (setq tmp (getangle (strcat "\nSpecify Rotation <" (angtos oa|rot) ">: ")))
(setq oa|rot tmp)
)
(princ msg)
)
( (member gr2 '(079 111))
(if (setq tmp (getdist (strcat "\nSpecify Offset <" (rtos (* fac oa|off)) ">: ")))
(setq oa|off (/ tmp fac))
)
(princ msg)
)
( t )
)
)
( (member gr1 '(011 025))
nil
)
( t )
)
)
)
(if mat (entdel ent))
(vla-explode blk)
(vla-delete blk)
(vla-delete def)
(LM:endundo (LM:acdoc))
)
)
(princ)
)
;; ssget - Lee Mac
;; A wrapper for the ssget function to permit the use of a custom selection prompt
;;
;; Arguments:
;; msg - selection prompt
;; params - list of ssget arguments
(defun LM:ssget ( msg params / sel )
(princ msg)
(setvar 'nomutt 1)
(setq sel (vl-catch-all-apply 'ssget params))
(setvar 'nomutt 0)
(if (not (vl-catch-all-error-p sel)) sel)
)
;; Start Undo - Lee Mac
;; Opens an Undo Group.
(defun LM:startundo ( doc )
(LM:endundo doc)
(vla-startundomark doc)
)
;; End Undo - Lee Mac
;; Closes an Undo Group.
(defun LM:endundo ( doc )
(while (= 8 (logand 8 (getvar 'undoctl)))
(vla-endundomark doc)
)
)
;; Active Document - Lee Mac
;; Returns the VLA Active Document Object
(defun LM:acdoc nil
(eval (list 'defun 'LM:acdoc 'nil (vla-get-activedocument (vlax-get-acad-object))))
(LM:acdoc)
)
;;------------------------------------------------------------;;
(vl-load-com)
(princ
(strcat
"\n:: ObjectAlign.lsp | Version 1.3 | © Lee Mac "
(menucmd "m=$(edtime,$(getvar,DATE),YYYY)")
" www.lee-mac.com ::"
"\n:: Type \"OA\" to Invoke ::"
)
)
(princ)
;;------------------------------------------------------------;;
;; End of File ;;

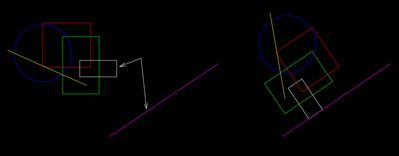

;;------------------------------------------------------------;;but with adaptation, I want to select not only one object and align it , but to select some objects and by selecting a line from it , and select a target line it align the bunch of line accordingly.
this code work fine with selecting a rectangle line but not if I select a line.
Can anyone make this adaptation?
THanks,
