One-way & Two-way Slabs Directions

Anonymous
Not applicable

in the name of  GOD  .



hello ta all.



in attached picture I draw a one-way slab in left and draw a two-way slab in right. (see attached picture.)



questions :



1 ) how can I understand which slab is one-way & which slab is two-way from appearence of those and without properties windows of those ??



2 ) how can I understand the direction of load transfer of one-way slab from appearence of that and without properties window of that ?? (for example in attached picture, what's the direction of load transfer of one-way slab (on x or on y direction ) ?



3 ) how can I rotate the direction of load transfer of one-way slab ??



thanks beforehand for your appropriate answers...

best regards.

Mohammad

0 Likes
Accepted solutions (2)
10,120 Views
12 Replies
Replies (12)
Message 2 of 13

Anonymous
Not applicable

Answer to all 3 questions;




0 Likes
Message 3 of 13

Anonymous
Not applicable
in the name of GOD .
please answer my questions comprehensive and detailed.
one by one and comprehensive.
thanks
0 Likes
Message 4 of 13

Rafal.Gaweda
Autodesk Support
Autodesk Support
Accepted solution

Re1






Re 2

Re 3






Rafal Gaweda
0 Likes
Message 5 of 13

Anonymous
Not applicable
in the name of GOD .
thanks.
I don't know how appear image 1 ??
0 Likes
Message 6 of 13

Rafal.Gaweda
Autodesk Support
Autodesk Support

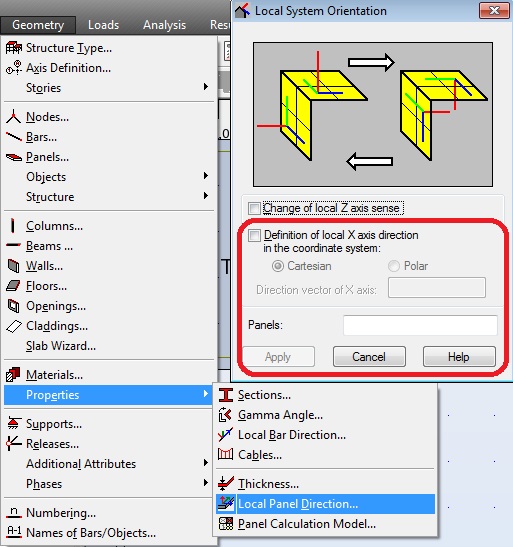

Geometry \ Panels



Rafal Gaweda
0 Likes
Message 7 of 13

Anonymous
Not applicable

in the name of GOD .



No. how appear this image ??




0 Likes
Message 8 of 13

Rafal.Gaweda
Autodesk Support
Autodesk Support
Accepted solution




Rafal Gaweda
Message 9 of 13

Anonymous
Not applicable
in the name of GOD .

very nice. thanks Rafal
0 Likes
Message 10 of 13

Anonymous
Not applicable
First and foremost i would like to say very detailed explanation you have got there, thanks. However, I think applying "Re 2" i.e the One way X/One way Y to a floor panel would convert it to a cladding, which would defeat the purpose since cladding do not participate in the load capacity of a structure therefore one would be unable to for example get floor analysis results in the form of maps. Is there any other way to go around this for floor panels?
0 Likes
Message 11 of 13

Rafal.Gaweda
Autodesk Support
Autodesk Support
If I understood you correctly,
see slide 22 on webinar 6
https://www.youtube.com/watch?v=3Jrvl4u-f4o&list=PLY-ggSrSwbZqow_60fiqJwS69mg1nQMzk&index=6


Rafal Gaweda
0 Likes
Message 12 of 13

Anonymous
Not applicable
Thanks alot. It solved my problem.
0 Likes
Message 13 of 13

farshid_abdiQRLYS
Explorer
Explorer

Hi



I didn't get your answer to question 2. Can you explain with a photo?
