How to use Load Patterns

[ALJohns]

Hi All

I have recently been experimenting with the load pattern feature in Robot.

Unfortunately, I am struggling to generate the maps/results (see attached screenshot) - is there a step by step tutorial/video available?

Can load patterns be applied to cladding elements? What am i missing?

Cheers

Aaron

[Refaat · Accepted solution]

Hi

Please , take a look to these links

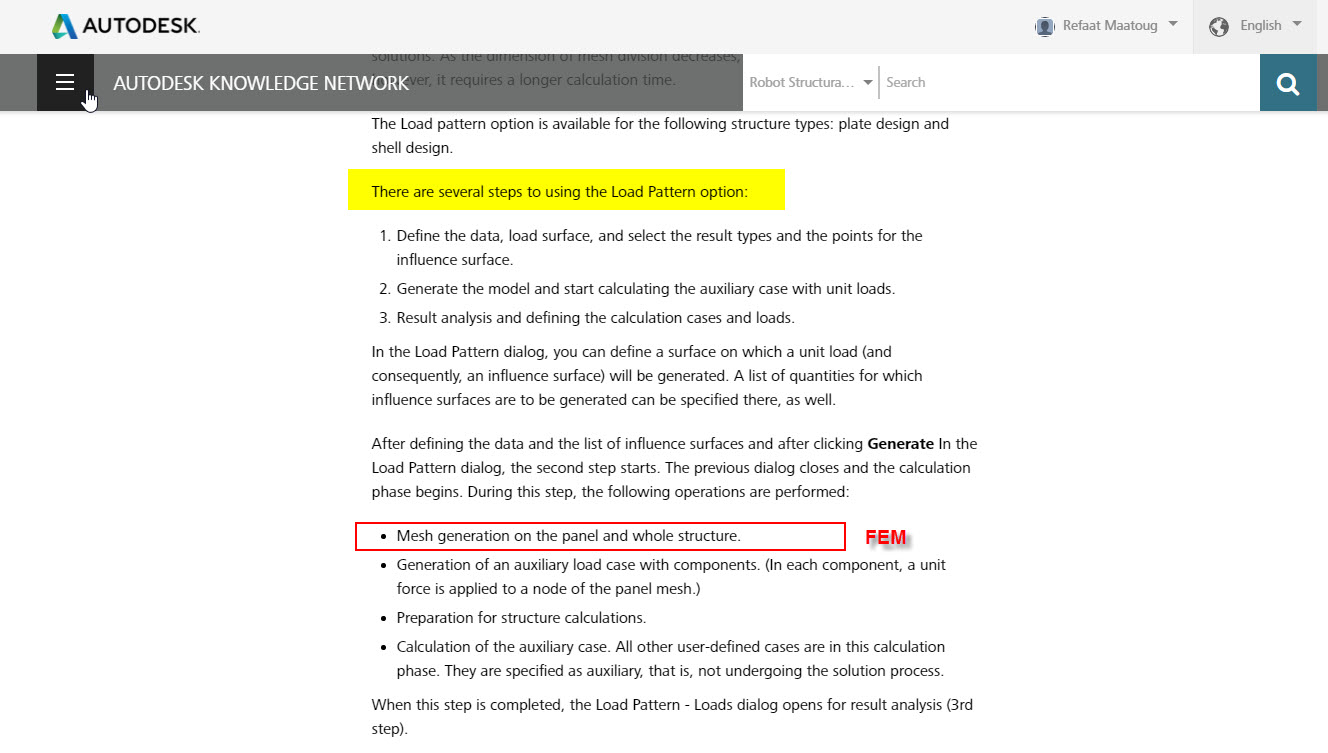

https://knowledge.autodesk.com/support/robot-structural-analysis-products/learn-explore/caas/CloudHe...

https://forums.autodesk.com/t5/robot-structural-analysis/pattern-load-design/td-p/5938741

I hope this will helps

 Refaat

[ALJohns]

Thanks Refaat

I did see that previous thread, but didn't know why there was no option to display the maps.

I have re-run the analysis using a slab instead of a cladding, and it seems to work fine. I guess you have to model a FEA panel, not a cladding...

[Refaat · Accepted solution]

Yes , FEM
