Hi,



I have a problem with my macro. The command of projection in 3D doesn't work. My view stay in XZ plane.



robapp.Window.Activate
Set mavueRobot = robapp.Project.ViewMngr.CreateView(1)
mavueRobot.Projection = I_VP_3DXYZ


mavueRobot.Visible = True
mavueRobot.Redraw (True)



I want also make a capture of my model with diagram of results. Have you an example of code for it ?



I would like to get for final result the exemple in attachment.

0 Likes
Accepted solutions (1)
23,948 Views
146 Replies
Replies (146)
Message 21 of 147

Anonymous
Not applicable

OK thanks a lot

0 Likes
Message 22 of 147

Anonymous
Not applicable

Hi I would like to make a zoom of my picture because I can't anything on my screen capture. I wrote this command but it's not good written. Would you mind correct it ?



mavueRobot.GetZoom(2, 2, 2, 2) = 1



I would like make a zoom of 150%.

0 Likes
Message 23 of 147

Rafal.Gaweda
Autodesk Support
Autodesk Support

It is not that easy because zoom depends on real coordinates and viewport size \ aspect ratio.

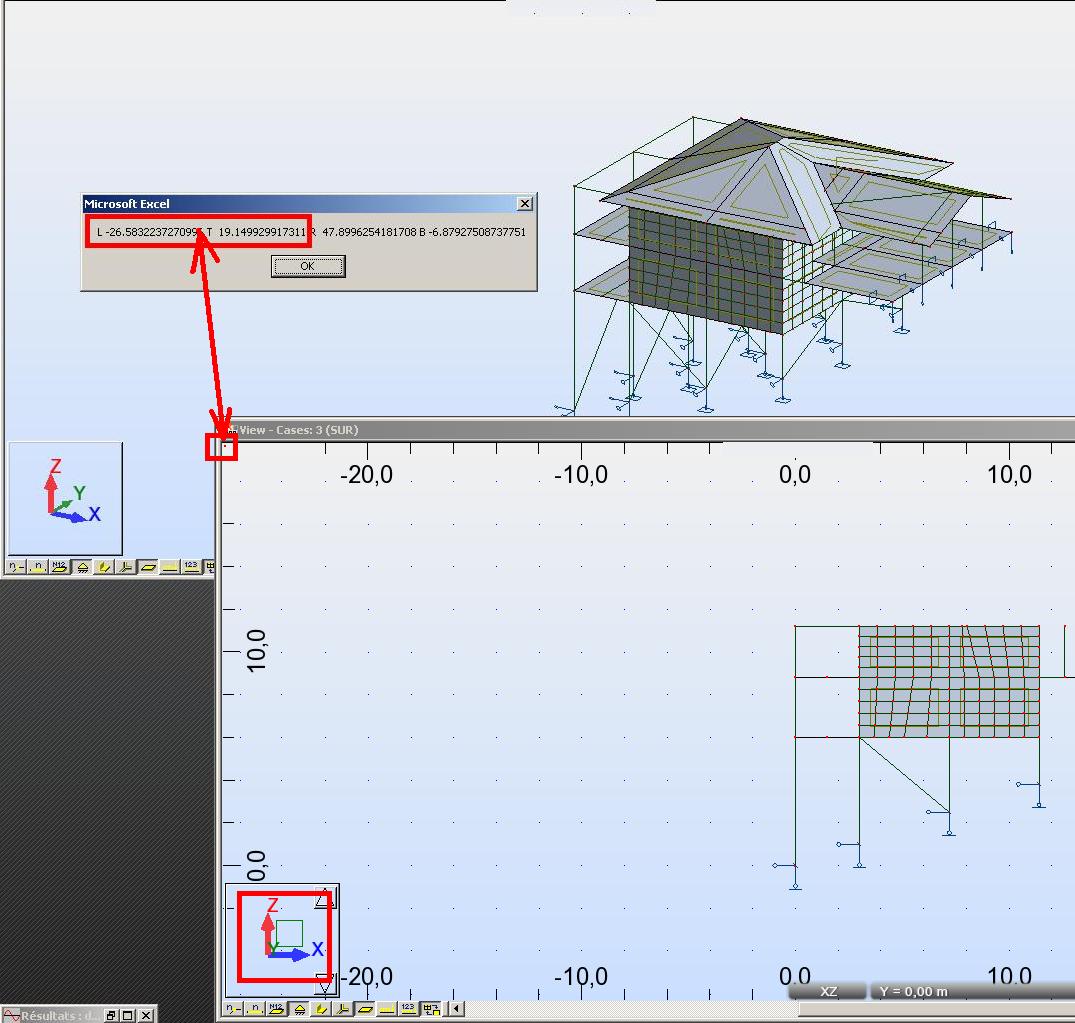

Small 2d example below. Left top corner is important and vieport aspect ratio






3d example  (left top corner is related to left top corner on ZX plain view) ; additionally you should define rotation point and rotation angle




Rafal Gaweda
0 Likes
Message 24 of 147

Anonymous
Not applicable

Hi it did'nt work.



I send you a video which show what I want to do ?



Would you mind send me the command of VBA to write in the macro for it ?

0 Likes
Message 25 of 147

Rafal.Gaweda
Autodesk Support
Autodesk Support

Try this - change zoomfactor:







Set RobApp = New RobotApplication




Dim viewRobot As IRobotView3

Set viewRobot = RobApp.Project.ViewMngr.GetView(1)

 viewRobot.Redraw (True)

viewRobot.Projection = I_VP_XY

viewRobot.ParamsFeMap.CurrentResult = I_VFMRT_DETAILED_MOMENT_XY

RobApp.Project.ViewMngr.Refresh



Dim l As Double, t As Double, b As Double, r As Double
l = 0
t = 0
b = 0
r = 0

viewRobot.GetZoom l, t, r, b

Dim CenterX As Double
Dim CenterY As Double
Dim VX As Double
Dim VY As Double

CenterX = (l + r) / 2
CenterY = (t + b) / 2



Dim zoomfacfor As Double
zoomfactor = 2
VX = Abs(l - CenterX) / zoomfactor
VY = Abs(t - CenterY) / zoomfactor

viewRobot.SetZoom CenterX + VX, CenterY + VY, CenterX - VX, CenterY - VY


RobApp.Project.ViewMngr.Refresh



Rafal Gaweda
0 Likes
Message 26 of 147

Anonymous
Not applicable

It doesn't change anything in the view. Have a look to the video.

0 Likes
Message 27 of 147

Rafal.Gaweda
Autodesk Support
Autodesk Support

mateaus wrote:

It doesn't change anything in the view. Have a look to the video.


viewRobot.SetZoom CenterX + VX, CenterY + VY, CenterX - VX, CenterY - VY


viewRobot.Redraw(True) ' <- I have not used this command, take a look in my code or use   ...Redraw(0)


RobApp.Project.ViewMngr.Refresh







Rafal Gaweda
0 Likes
Message 28 of 147

Rafal.Gaweda
Autodesk Support
Autodesk Support
0 Likes
Message 29 of 147

Anonymous
Not applicable

I don't understand what does mean left, top, right and bottom for the command getzoom ?

0 Likes
Message 30 of 147

Rafal.Gaweda
Autodesk Support
Autodesk Support

Take  a look at my screen shots in message 23 in this thread



Rafal Gaweda
0 Likes
Message 31 of 147

Anonymous
Not applicable

I would like to modify the layout. I prefer without the object manager and with the rules.



Can you give me the command ? I think it's with IRobotLayoutId and IRobotViewMngr.

0 Likes
Message 32 of 147

Anonymous
Not applicable

I already read it. I need more explanations if it's possible.

0 Likes
Message 33 of 147

Rafal.Gaweda
Autodesk Support
Autodesk Support

Ruler :



mavueRobot.ParamsDisplay.Set I_VDA_OTHER_RULER, True
robapp.Project.ViewMngr.Refresh



Object Inspector - not possible to open \ close it by API





Rafal Gaweda
0 Likes
Message 34 of 147

Anonymous
Not applicable

Ok I would like to activate also with VBA :



excentrements

Croquis barres

epaisseur panneaux

profilés couleurs



Can you give me the VBA command ?



0 Likes
Message 35 of 147

Rafal.Gaweda
Autodesk Support
Autodesk Support

mavueRobot.ParamsDisplay.Set I_VDA_ADVANCED_OFFSETS, True

mavueRobot.ParamsDisplay.Set I_VDA_SECTIONS_SHAPE, True

mavueRobot.ParamsDisplay.Set I_VDA_FE_PANEL_THICKNESSES, True

mavueRobot.ParamsDisplay.Set I_VDA_SECTIONS_COLORS, True
robapp.Project.ViewMngr.Refresh



Rafal Gaweda
Message 36 of 147

Anonymous
Not applicable

I would like to give the name to a screen capture wich is the name of the load :



Dim ScPar As RobotViewScreenCaptureParams
Set ScPar = robapp.CmpntFactory.Create(I_CT_VIEW_SCREEN_CAPTURE_PARAMS)

ScPar.Name = ???



I think it's something with get and from text ?



For example "3 : Equipements"

0 Likes
Message 37 of 147

Anonymous
Not applicable

I have got a problem with the display. The symbol of loads doesn't appear.



The refresh is not done. Have you got an idea ?



mavueRobot.ParamsDisplay.Set I_VDA_ADVANCED_OFFSETS, False      'afficher exentrements
mavueRobot.ParamsDisplay.Set I_VDA_SECTIONS_SHAPE, False        'afficher croquis barres
mavueRobot.ParamsDisplay.Set I_VDA_SECTIONS_SYMBOLS, True       'afficher symboles barres
mavueRobot.ParamsDisplay.Set I_VDA_FE_PANEL_THICKNESSES, False  'afficher epaisseur panneaux
mavueRobot.ParamsDisplay.Set I_VDA_SECTIONS_COLORS, False       'afficher profilés en couleur
mavueRobot.ParamsDisplay.Set I_VDA_FE_FE_INTERIOR, False        'interieur element finis
mavueRobot.ParamsDisplay.Set I_VDA_FE_CLADDING_INTERIOR, False  'interieur bardages
mavueRobot.ParamsDisplay.Set I_VDA_FE_PANEL_INTERIOR, False     'interieur panneaux
mavueRobot.ParamsDisplay.Set I_VDA_FE_FINITE_ELEMENTS, False    'afficher elements finis
mavueRobot.ParamsDisplay.Set I_VDA_LOADS_VALUES, True               'valeurs charges
mavueRobot.ParamsDisplay.Set I_VDA_LOADS_SYMBOLS_UNIFORM_SIZE, True '
mavueRobot.ParamsDisplay.Set 68, True                               'symbole charges ponctuelles
mavueRobot.ParamsDisplay.Set 69, True                               'symbole charges lineaires
mavueRobot.ParamsDisplay.Set 70, True                               'symbole charges surfaciques

For i = 1 To 3

mavueRobot.Selection.Get(I_OT_CASE).FromText (i) ' selecting case

mavueRobot.Redraw (0)
robapp.Project.ViewMngr.Refresh

ecran_capture = "charges" & i

Call screen_capture

Next i

 image result

0 Likes
Message 38 of 147

Rafal.Gaweda
Autodesk Support
Autodesk Support

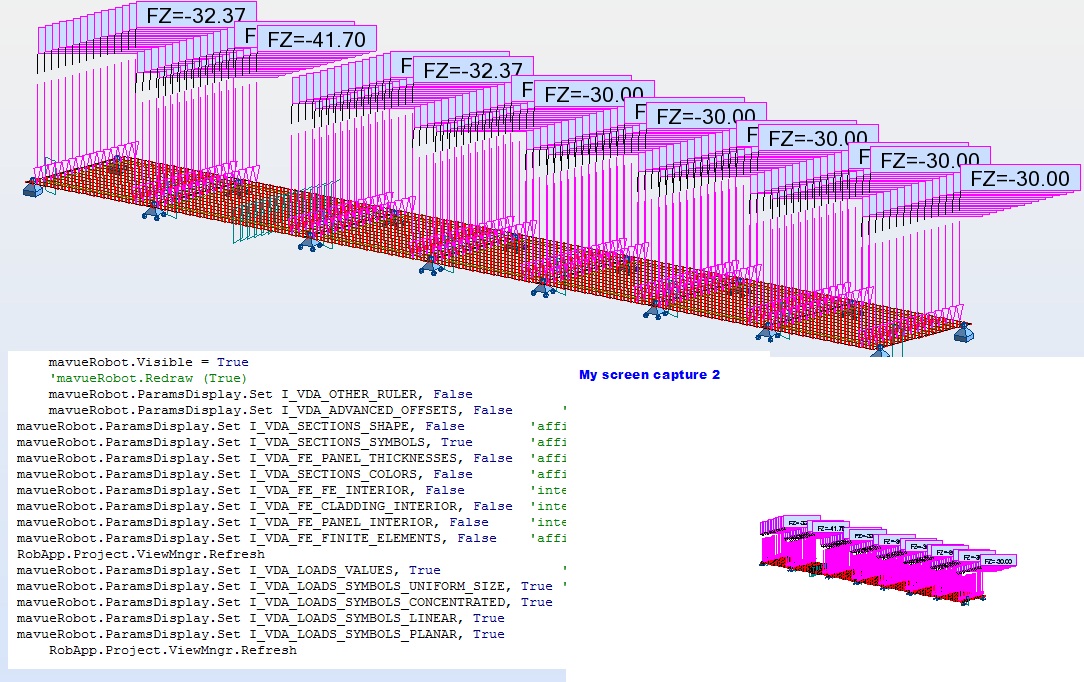

I have got model from you once. There are no loads in case 1 and 3 so there is nothing to be displayed

Case 2 works fine.



.....

mavueRobot.Visible = True
'mavueRobot.Redraw (True)
mavueRobot.ParamsDisplay.Set I_VDA_OTHER_RULER, False
mavueRobot.ParamsDisplay.Set I_VDA_ADVANCED_OFFSETS, False 'afficher exentrements
mavueRobot.ParamsDisplay.Set I_VDA_SECTIONS_SHAPE, False 'afficher croquis barres
mavueRobot.ParamsDisplay.Set I_VDA_SECTIONS_SYMBOLS, True 'afficher symboles barres
mavueRobot.ParamsDisplay.Set I_VDA_FE_PANEL_THICKNESSES, False 'afficher epaisseur panneaux
mavueRobot.ParamsDisplay.Set I_VDA_SECTIONS_COLORS, False 'afficher profilés en couleur
mavueRobot.ParamsDisplay.Set I_VDA_FE_FE_INTERIOR, False 'interieur element finis
mavueRobot.ParamsDisplay.Set I_VDA_FE_CLADDING_INTERIOR, False 'interieur bardages
mavueRobot.ParamsDisplay.Set I_VDA_FE_PANEL_INTERIOR, False 'interieur panneaux
mavueRobot.ParamsDisplay.Set I_VDA_FE_FINITE_ELEMENTS, False 'afficher elements finis
mavueRobot.ParamsDisplay.Set I_VDA_LOADS_VALUES, True 'valeurs charges
mavueRobot.ParamsDisplay.Set I_VDA_LOADS_SYMBOLS_UNIFORM_SIZE, True '
mavueRobot.ParamsDisplay.Set I_VDA_LOADS_SYMBOLS_CONCENTRATED, True
mavueRobot.ParamsDisplay.Set I_VDA_LOADS_SYMBOLS_LINEAR, True
mavueRobot.ParamsDisplay.Set I_VDA_LOADS_SYMBOLS_PLANAR, True
RobApp.Project.ViewMngr.Refresh

' making screen capture
Dim ScPar As RobotViewScreenCaptureParams
Set ScPar = RobApp.CmpntFactory.Create(I_CT_VIEW_SCREEN_CAPTURE_PARAMS)

For i = 1 To 3

mavueRobot.Selection.Get(I_OT_CASE).FromText (i) ' selecting case

mavueRobot.Redraw (0)
RobApp.Project.ViewMngr.Refresh

ScPar.Name = "My screen capture" + Str(i)
ScPar.UpdateType = I_SCUT_UPDATED_UPON_PRINTING
mavueRobot.MakeScreenCapture ScPar
Next i






Rafal Gaweda
0 Likes
Message 39 of 147

Anonymous
Not applicable

It doesn't work, look at the video :



demo



I have to select by myself the case of load in the model.



Refresh doesn't work.

0 Likes
Message 40 of 147

Rafal.Gaweda
Autodesk Support
Autodesk Support

Movie of my code

I am using ARSA 2012, but the same effect I got on 2011





Rafal Gaweda
