Hello all,

I need to create a steel connection in Revit between beams. Do you know how I could see the welds in 3D?



Thank you!




0 Likes
Accepted solutions (1)
3,291 Views
6 Replies
Replies (6)
Message 2 of 7

robertwmerriman1
Advisor
Advisor
Accepted solution

Hi @mairh_tsek

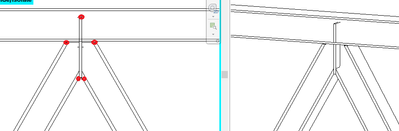

The welds inserted manually from the steel tab or the welds placed automatically via connections do not show as 3D solids, they are show as + symbols

Weld symbol.PNG

Rob Merriman, Technical Specialist / Principal Structural Designer, OLG
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

Message 3 of 7

mairh_tsek
Collaborator
Collaborator

Thank you for your answer.

So in order to have a 3d result I should create model in place elements?

0 Likes
Message 4 of 7

robertwmerriman1
Advisor
Advisor

Hi @mairh_tsek



Yes if you want to see a 3D elemt of the weld it will need to be modelled manually.

Rob Merriman, Technical Specialist / Principal Structural Designer, OLG
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

Message 5 of 7

mairh_tsek
Collaborator
Collaborator

ok thank you.. One more question..is it possible to cut these beams like the image below ? (I already try to create a generic family with a void inside and the 'Cut with Voids When Loaded ' option selected..but nothing happens )



Thank you!



cut beam.PNG

0 Likes
Message 6 of 7

robertwmerriman1
Advisor
Advisor

hI @mairh_tsek



Yes its possible, the examples I have shown below use fucntions from the steel tab. The only thing to note is when you start using these they change the Beam to a steel fabrication element and some normal functions become disabled (which is why your method might not have worked) all info can be seen here - https://knowledge.autodesk.com/support/revit/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/Revit-M...



I used either the Saw cut flange and changed the face it was cutting to

Saw cut flange.png



Or the contour cut and then sketch out the cut needed

Contour cut.PNG



Ive also made a short screencast showing how I did this modelling - https://autode.sk/3S9NpJG

Rob Merriman, Technical Specialist / Principal Structural Designer, OLG
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

Message 7 of 7

mairh_tsek
Collaborator
Collaborator

@robertwmerriman1
