web truss element

TomasoCardia · ‎05-26-2020

Hi to all..

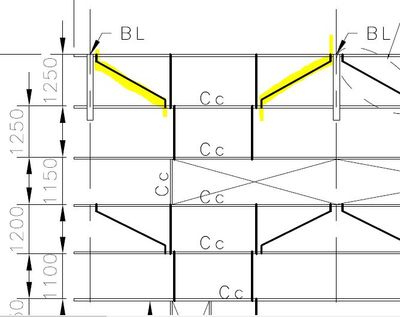

I need to build a truss (image 01) with this element as web (image 02)

Is there somebody who can help me?!

Ahmed_Muharram · ‎05-26-2020

is the problem the section or what?

could you clarify more?

Ahmed Muharram, B.Sc, AEE, ACI, ACP
BIM Manager
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

TomasoCardia · ‎05-27-2020

I'm working on an industrial building. the element that I have to do is the perimetral closure. I'm doing it with the truss tool of Revit.

The problem is that the truss allow you to work only with one line por element (web, vertical,..) in my case I have this element of "S" form (a folded smooth steel bar) to insert as web, but I don't know how to put it inside the truss

Ahmed_Muharram · ‎05-27-2020

you could use model in place as a structural framing and copy it

Ahmed Muharram, B.Sc, AEE, ACI, ACP
BIM Manager
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

Tom_Kunsman · ‎05-28-2020

what ever you do, do NOT model in place and copy the element! This will not make your job any easier on future projects.

If I understand correctly, this bar element is a web member of the truss?

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.

TomasoCardia · ‎05-29-2020

exactly! i didn't..

I found the solution and I was really proud of me 🙂

(I did a beam that had this curves (with some parameter) and truss recognized that as beam. Clear and correct job :)) )

thanks in any case !
