Void extrusion in a column

[NERDASORUS]

hello

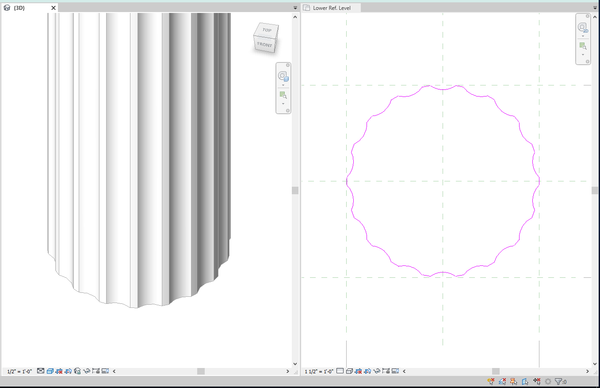

i want to create the shape shown in the attached picture (named "required"), what i did is i picked a circular column, i made a void extrusion of a circle, locked it to the upper level then i arrayed that extrusion radially.

the problem is, after i load the family to the project, the circle column is extended but the void does not, can you help me please?

[ennujozlagam]

sorry i cannot open i don't have revit 2021 yet. try to align the void extrusion in the level reference line and lock and see if helps. thanks

[Ahmed_M_Heteba]

hi

you have to align the void with the top & Bot. of the column and associate it using the lock icon

see below screen shot i have made one alignment as an example.

[hmunsell]

if you only need it for a specific size, instead of using voids (which tent do bog down your families and models) why not just edit the extrusion shape to include the grooves? there may a way to add parameters to the shape so it can be adjustable, i just didn't have time at this moment 🙂
