Hey,

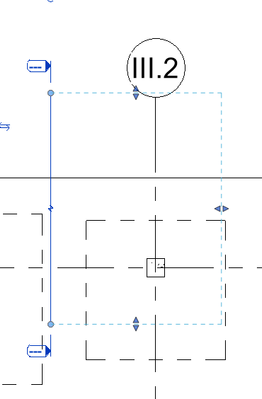

Is there any way to hide section line in sheets view(middle one)?

Also how can I rotate this roof by extrusion pattern by 90 degrees? Its defined like sloped glazing and always is rotated by the slope...

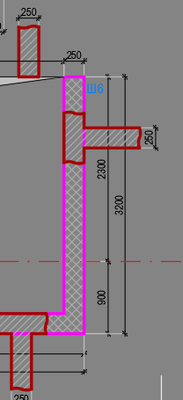

Is there any way to create section views like this: Or I should be creating it manually?

Thanks!

[ToanDN · Accepted solution]

---

@apdim wrote:

Hey,

Is there any way to hide section line in sheets view(middle one)?

Click on the break symbol and drag the line ends.

Also how can I rotate this roof by extrusion pattern by 90 degrees? Its defined like sloped glazing and always is rotated by the slope...

Use a model surface pattern for the material then you can tab on it and rotate.

Is there any way to create section views like this: Or I should be creating it manually?

Yes. Use a combination of a detail view and detail components.

Thanks!

---

[apdim]

"Use a model surface pattern for the material then you can tab on it and rotate."
I should create a generic roof by extrusion and assing material with pattern? Im almost completly new and I didnt get that...
