REVIT STRUCTURAL PLAN AND SECTION CROSS REFERENCING

[Anonymous]

Hello Everyone,

I have gotten a few things to resolve.

1. How do I tie floor sections to each floor plan, such that each floor section number or name starts with No. 1 on both Layout and Section Drawing Sheet?

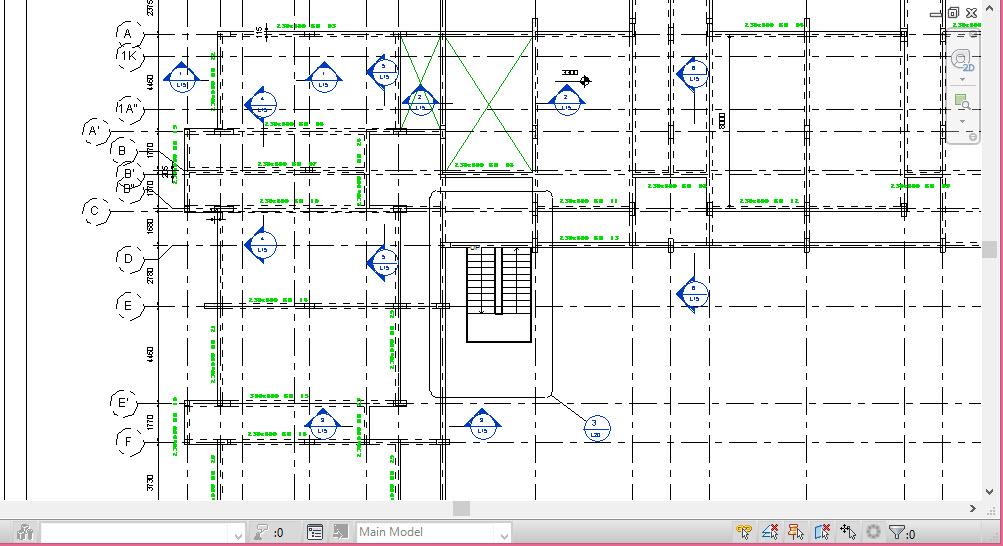

FIG. 1: FIRST FLOOR PLAN

FIG. 2: FIRST FLOOR PLAN - SECTIONS

[twebb4CYQY · Accepted solution]

I'm assuming you want it to read something like 1.1, 1.2 and 1.3 or 1-1 and 1-2 etc, you'll have to manually renumber each section.  You can edit the numbering in the Properties for each section or detail, under Detail Number.

[Anonymous]

Thank you.

I have already resulted to editing the section name to suit my intention.

Regards.
