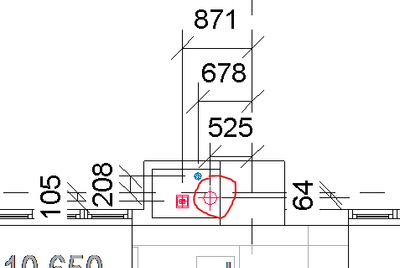

Some of the sanitary pipe in plan view only shows cross line as shown on picture.
I want the pipe all shows like this.
How can I solve this problem?
Pipe in plan view only shows cross line
Check the detail settings of your view (fine, medium or coarse) and check your ris/drop symbol settings for your system.
This might be different for sanitary than for some of your other systems
Louis
Please mention Revit version, especially when uploading Revit files.
Hi L.Maas,
Is it possible to remove the cursor/plus, instead of the rise/drop symbol?
Or is it possible to adjust the line thickness of the cursor?
Hi craigjonnson,
Your respence is highly appreciated.
The centre line was thick even if the pipe were not cut.
regards,
@waldo9QBRP Pipes are not cuttable elements.so they just have projection line weight
You found a post helpful? Feel free to give it a like!
Your question got successfully answered? Click the 'Mark as Solution' button.
Mahmoud Zeidan
BIM Manager / Mechanical Engineer
@waldo9QBRP wrote:The centre line was thick even if the pipe were not cut.
Adjust the overrides for rise drop symbols:-
Hello,
In visibility/graphics overrides, hide the centerline.
