Panel Schedule Circuit Number With Panel Name Suffix

[ebsoares]

Hi, all.

Suddenly, our switchboard circuit index started appending the switchboard name before the circuit number - like this:

In this case, the switchboard is called "DPA", and so it appends "DPA" to every single circuit number. If we change the switchboard name, the circuit number/naming updates as well...

I have never seen it do that before and looked everywhere I could think of to turn it off. In the template edit mode there's nothing other than simply the "circuit number" (no formula):

Could someone help me figure out how to make it stop doing that?

Thanks in advance,

Edgar

[saNGFVJ · Accepted solution]

Circuit naming is determined through 'Electrical Settings' and 'Circuit Naming' it sets up similar to a label. If it is just the circuit number needed then create a new scheme and have the label show 'Phase Label' only. Also make sure the switchboard circuit naming in 'Properties' under the 'Electrical - Circuiting' grouping corresponds to your selection.

[ebsoares]

Thank you, @saNGFVJ .

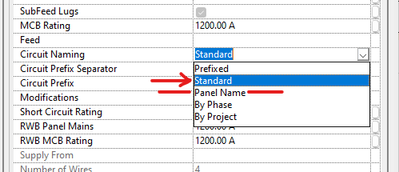

The issue had nothing to do with with settings in the "electrical settings" (but thanks for pointing to it - it could have been), but you were on to something when you said to also take a look at the instance properties of the object - the "circuit naming" parameter in those objects were set to "panel name", and instead they should be either blank (which should be the default anyway), or "standard" - that fixed the issue:

Now I just need to figure out why our switchboards started coming with that setting set to "panel name" by default now, as it never did that before - but I'll post it here if I can't find the solution to it.

Thanks again, @saNGFVJ 👍
