Cable Tray connections vertical

d_spigolon
Explorer
Explorer

The main cable tray backbone will be installed in the building's four-story shaft. From it, a dedicated floor cable tray will branch out at each level.

However, the software is unable to generate a vertical "T" connection. Can anyone help me?



0 Likes
Accepted solutions (1)
515 Views
10 Replies
Replies (10)
Message 2 of 11

iainsavage
Mentor
Mentor

Is there a suitable tee family in your routing preferences?

What would the connection look like in real life = would the horizontal runs not just start with a downward looking bend so that cables can sweep onto them from the vertical run?




0 Likes
Message 3 of 11

d_spigolon
Explorer
Explorer

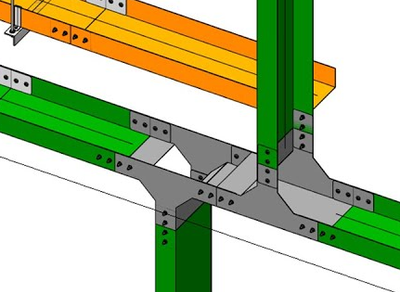

I would like to repeat number 17.

Vertical down tee


0 Likes
Message 4 of 11

iainsavage
Mentor
Mentor

You would need to find or create a suitable Revit family, maybe from a manufacturer's BIM content?

0 Likes
Message 5 of 11

sragan
Collaborator
Collaborator

I got a reasonable approximation just by creating the horizontal, and then one elbow by making a vertical.  Then I drug the riser past the bend, and in a section view, I mirrored the bend.






0 Likes
Message 6 of 11

d_spigolon
Explorer
Explorer

good result but I didn't understand.

can you separate the phases?

Do you think it is possible to create a custom family that automatically generates the link?

0 Likes
Message 7 of 11

sragan
Collaborator
Collaborator
Accepted solution

I created a horizontal run, and then changed the elevation of the run, and created another horizontal run so you have this:








Just delete the bottom elbow and section if you don't need it.


Then I drug the vertical riser past the elbow:




You can do this in a 3D view, or in a section view.

Then go back to the plan view and create a section.  And mirror the elbow.






Its more of a workaround, but you could trim the vert & horiz. sections and "group" them so they stay together.






You might even be able to lock them to the try so they move with the tray, but they are more workarounds that a working family.









Message 8 of 11

iainsavage
Mentor
Mentor

That's the same as I did but without mirroring the bend.



There is this old post: https://forums.autodesk.com/t5/revit-mep-forum/vertical-tee-cable-tray-fitting/td-p/6742801



I must say though that I can't see any manufacturers who supply that fitting "number 17" - where did you get that screenshot @d_spigolon ?

Message 9 of 11

d_spigolon
Explorer
Explorer

yes of course, for example legrand us


0 Likes
Message 10 of 11

iainsavage
Mentor
Mentor

I don't think that's the same fitting as your "item 17"? I think it is meant to be used like this rather than the orientation that you want:




Legrand and Vantrunk have their own BIM content libraries - is their tee family not included in that?

Anyway that link I posted talks about how to create a suitable family.

There are also videos on Youtube which claim to show how to create a suitable family.

I found this on bimobject:




As I said earlier though you might need to create your own family if you can't find a suitable pre-made one.



0 Likes
Message 11 of 11

fabiosato
Mentor
Mentor

Hello,



You can create a family for that purpose, but it will not be created automatically.

I suggest you use the multiport part type for this kind of fitting.

Fábio Sato
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature
