Rebar anotations on bridges in vertical curve

Rebar anotations on bridges in vertical curve

I'm now doing some bridge rebar and I'm facing with some issues. I can not get any rebar annotations if the bridge has a vertical curve in its profile.

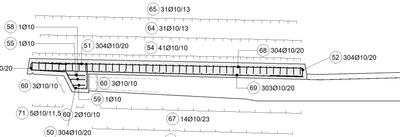

1. I am not able in plan view to select the bars and show how they are spreading if they are in this curve. I did them manually and by simple tags and detail lines.

2. Also in sections if bars are not ideally perpendicular to the section we can not extract the annotations.

3. Will be nice if we can use split rebar for aligned/surface rebar style.
