Z shape floor

Hello friends,



How to draw "Z" shape slab which shown on pic in revit



Thanks.

pic 01.jpg

3 ANTWORTEN 3
Nachricht 2 von 4
RDAOU
als Antwort auf: yoosafshajeeb

@yoosafshajeeb



You place 2 concrete Slabs first

Then you connect with either of the following

  1. A concrete wall (same material and join Geometry)
  2. A Slab Edge
  3. A Concrete Rectangular Beam


YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 3 von 4
syman2000
als Antwort auf: yoosafshajeeb

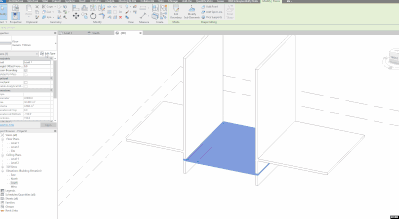

Normally I would simply draw floor slab. Set it to drop depth + floor thickness.




Once you have the floor drawn, then use join geometry












Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 4 von 4
ToanDN
als Antwort auf: yoosafshajeeb

Any approaches above are feasible.  It depends on your design to choose which one:



- if the thickness of the vertical is constant and the height varies among the drops in your project, then using walls is easier and you only need one wall type

- if the thickness varies, height is constant, then using floors is easier with one floor type

- if both thickness and height are constant, then using a profile based approach (slab edges, beams) for consistency
