Window not showing correctly in floor plan or section view

3 ANTWORTEN 3
Antworten
Nachricht 1 von 4
samuelbk44
207 Aufrufe, 3 Antworten

Window not showing correctly in floor plan or section view

Here are some pictures:

Screenshot 2024-11-02 213529.png

Screenshot 2024-11-02 213736.png

  

Screenshot 2024-11-02 213427.png

Screenshot 2024-11-02 213448.png


Screenshot 2024-11-02 215058.png
The first picture shows how the window appears in the floor plan view. Interestingly, it looks correct in another project and when placed as a legend component (as the picture below). I’ve tried adjusting the view range and making it a shared element, but neither approach has been successful.


The same issue occurs in the section view. I would be satisfied with just the standard detail lines that appear when hovering with the mouse. However, ideally, I would prefer the detail level shown in the last picture, which is taken from a section box in a 3D view.

3 ANTWORTEN 3
Nachricht 2 von 4
theslacollier
als Antwort auf: samuelbk44

The 3D geometry is probably not checked to show in the plan view and section.

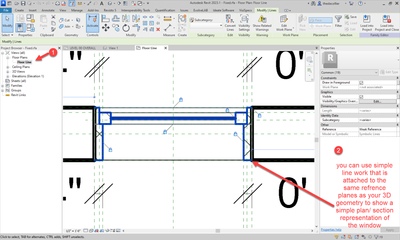

If your family has the 2D line work, check which sub-categories the lines in the family were created and maybe your view template (or visibility graphics)  has those categories unchecked.

if not this then send the family it could be many other things

RVT to the max
Nachricht 3 von 4
handjonathan
als Antwort auf: samuelbk44

Hi @samuelbk44

Thanks a lot for posting your question to the forums!   Has the solution suggested by @theslacollier helped with your issue?

We look forward to hearing back from you with more information so we can help you as a community! 



Jonathan Hand


Industry Community Manager | AEC (Architecture & Building)

Nachricht 4 von 4
samuelbk44
als Antwort auf: theslacollier

@theslacollier I’m sorry for the late reply, and thank you for your thorough answer — much appreciated!

.

I tried your suggestion, but it doesn’t work for the project I’m working on. However, by accident, I discovered a solution. If I use the "Cut Geometry" tool , first selecting the window, then selecting the attached wall, it works. There seems to be something blocking the view in the family model.



The only issue is that there’s now too much detail. The 2D linework to represent the window still doesn’t show up in plan view, and in the family model, there doesn’t seem to be a subcategory for this. As a workaround, I’ve been manually drawing the lines in the family model, but this isn’t ideal.
