Why does extrusion not appear here?

3 ANTWORTEN 3
Antworten
Nachricht 1 von 4
Anonymous238
207 Aufrufe, 3 Antworten

Why does extrusion not appear here?

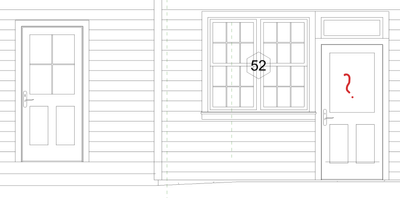

Added mullions to a door as an extrusion. Loaded it into my project and I can only see the extrusion on one side even though the extrusion passes the glass pane on both sides and has no visibility overrides.







3 ANTWORTEN 3
Nachricht 2 von 4
Anonymous238
als Antwort auf: Anonymous238

Anyone?

Nachricht 3 von 4
mhiserZFHXS
als Antwort auf: Anonymous238

Hard to tell for sure from your image, but my guess is the muntins are only on one side of the glass and the glass isn't transparent.

Nachricht 4 von 4
ToanDN
als Antwort auf: Anonymous238


@Anonymous238 wrote:

Added mullions to a door as an extrusion. Loaded it into my project and I can only see the extrusion on one side even though the extrusion passes the glass pane on both sides and has no visibility overrides.










It is not constrained properly in the family so that when the wall thickness is different, the muntin shifted.  To fix it, set the work plane of the muntin extrusion to a face of the glass, or to a ref plane centered the glass thickness.
