why do wall lines not clean up properly even when i have used trim tool

8 ANTWORTEN 8
GELÖST
Antworten
Nachricht 1 von 9
svalen
626 Aufrufe, 8 Antworten

why do wall lines not clean up properly even when i have used trim tool

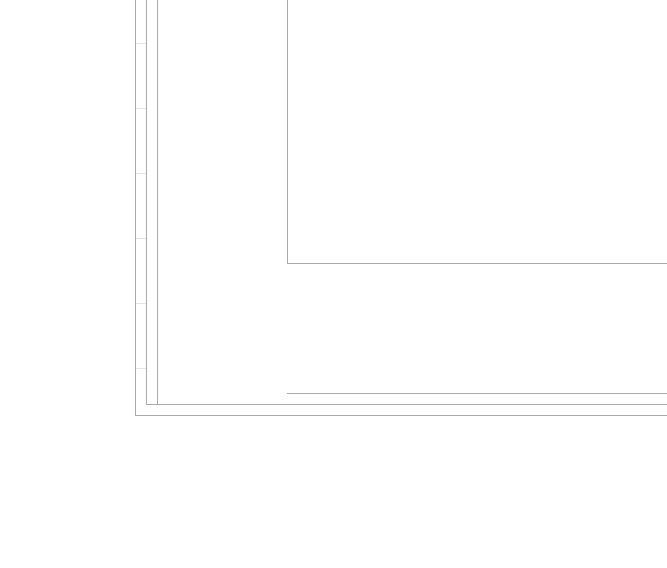

In the attached image, I used trim to join walls but as you can see, lines are missing at the corner.



Why would this be?corner.JPG

8 ANTWORTEN 8
Nachricht 2 von 9
barthbradley
als Antwort auf: svalen

Use the Wall Join tool to change the way it is Joined at the corner.



Wall Joins Tool.png

Nachricht 3 von 9
hmunsell
als Antwort auf: svalen

use the wall join tool


Howard Munsell
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.



EESignature


Nachricht 4 von 9
svalen
als Antwort auf: hmunsell

Sorry, I need to revise the question a bit.   The image I had attached is of an overlay looking up.



In the first floor plan it looks normal, but it is different in the overlay. Why would this be?

Nachricht 5 von 9
barthbradley
als Antwort auf: svalen

Actually, I don't think Automatic Join is turned on.  Allow Join.

Nachricht 6 von 9
barthbradley
als Antwort auf: svalen

Forget that last post. I didn't see your followup.



What's the View's underlay settings?

Nachricht 7 von 9
svalen
als Antwort auf: barthbradley

Nevermind,   yes, wall join fixed this, thank you.    Why does that happen?

Nachricht 8 von 9
barthbradley
als Antwort auf: svalen


@svalen wrote:

Nevermind,   yes, wall join fixed this, thank you.    Why does that happen?




Dunno. Sometimes I got to fight Revit too with certain join conditions. She can be temperamental.

Nachricht 9 von 9
Redrunner92
als Antwort auf: barthbradley


@barthbradley wrote:

... She can be temperamental.


That's putting it mildly.
