Why do my walls go through the floor

21 ANTWORTEN 21
GELÖST
Antworten
Nachricht 1 von 22
Anonymous
4036 Aufrufe, 21 Antworten

Why do my walls go through the floor

As per the attached, my walls go through the floor, how do I begin my walls from the floor base?

21 ANTWORTEN 21
Nachricht 2 von 22
barthbradley
als Antwort auf: Anonymous

looks like they need a base offset.



...you know, typically the top of floor is where the Level is.

Nachricht 3 von 22
ToanDN
als Antwort auf: Anonymous

Is the top of the finish floor higher than the level?  You can attach the wall base to the floor or join geometry the walls to the floor.

Nachricht 4 von 22
barthbradley
als Antwort auf: ToanDN

I think the real issue is with the doors.  Looks like thresholds are buried in the floor.  I'd either lower the floor or create a finish floor level for walls, doors , etc.

Nachricht 5 von 22
ennujozlagam
als Antwort auf: Anonymous

set your wall from the level > base offset = 0,0. thanks








Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 6 von 22
Anonymous
als Antwort auf: ennujozlagam

Base offset is zero

Nachricht 7 von 22
Anonymous
als Antwort auf: barthbradley

I lowered the floor and still seem to have the same issue. I am so confused, it's like you guys are speaking in a different language haha. Would you mind creating a screen cast to demonstrate please?

Nachricht 8 von 22
ennujozlagam
als Antwort auf: Anonymous

post your file here so we can check. thanks





Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 9 von 22
barthbradley
als Antwort auf: Anonymous

I understand your confusion and I believe the best remedy is to lower the top of your floor to the level.  Maybe you put in an offset for the floor by accident. Whatever, the top of the floor should be flush with the level.  This is the solution. Believe me.

Nachricht 10 von 22
Anonymous
als Antwort auf: Anonymous

check the base offset or join the wall to floor ...ur pblm will solve.

Nachricht 11 von 22
barthbradley
als Antwort auf: Anonymous

Huh?

Nachricht 12 von 22
barthbradley
als Antwort auf: Anonymous

@Anonymous: check the Floor's "Height Offset From Level".  Does it read 0'-0"?




Nachricht 13 von 22
Anonymous
als Antwort auf: barthbradley

can i see ur file.?

Nachricht 14 von 22
Anonymous
als Antwort auf: Anonymous

looks like definitely you have another level around. Maybe from a linked file. And the floor is drawn on that one. My two cents.


Nachricht 15 von 22
kadmonkee
als Antwort auf: Anonymous

in the image example I have a basic wall that extends past level 2 up to level 3

I included a Top offset and top extension (-3 5/8") to meet the underside of level 3 slab

the base offset = 0 which sits on top of Level 1 slab.

the (2) blue grips at the top and bottom are for splitting the offset and extensions of the wall components.

if you have 2 floors in close proximity and the wall projects below to the other floor, you can change the Base constraint to the correct floor, or set a base offset the distance between the 2 floors.

if i wanted the Wall to be @ Grade I would set my base constraint to that level or assign a base offset to (-6") from Level 1







If there is any information shared that is of value please give Kudos
If a solution is provided by any posters please mark them as Solved to benefit everyone else.
thank you
Nachricht 16 von 22
Anonymous
als Antwort auf: kadmonkee

This is like same that I'm saying, but with more bells and whistles.

Alias "more complicated'.

Nachricht 17 von 22
kadmonkee
als Antwort auf: Anonymous

I do not believe it is more complicated.

all the basics of how to place a wall are there.

using the extension and offset are typical workflows in most offices

I included those options only to help the O.P. what each setting can do.

my understanding of the O.P's issue is what I was replying to

I am only sharing my experience towards a solution not criticizing others responses.






If there is any information shared that is of value please give Kudos
If a solution is provided by any posters please mark them as Solved to benefit everyone else.
thank you
Nachricht 18 von 22
barthbradley
als Antwort auf: Anonymous


@Anonymous wrote:

can i see ur file.?




I think you meant to ask the OP this question? That is a good request to make of the OP too.



@Anonymous: Zip your file and post it (via "Attachments").  That would help us to help you.  If you have already figured it out and moved on, please let us know.

Nachricht 19 von 22
Anonymous
als Antwort auf: barthbradley

Hi everyone,



Apologies for the delay. Please find attached the file. I have not had time to tinker with the file per your suggestions but in the mean time I have attached.



Many thanks,


Sam

Nachricht 20 von 22
barthbradley
als Antwort auf: Anonymous

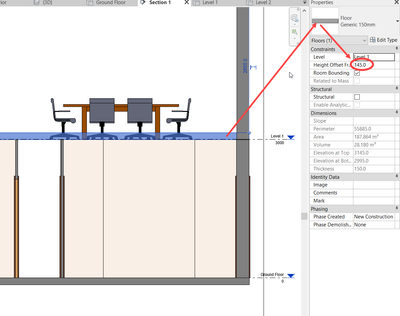

Change 145 to 0.
