Why are my curtain walls showing up like this?

16 ANTWORTEN 16
Antworten
Nachricht 1 von 17
Anonymous
742 Aufrufe, 16 Antworten

Why are my curtain walls showing up like this?

I'm designing a skyscraper for my architecture studio class, and on some floors, my curtain walls show up like this (see picture). On some floors, they are just fine like they should be. Please help!curtain wall.JPG

Beschriftungen (1)
16 ANTWORTEN 16
Nachricht 2 von 17
barthbradley
als Antwort auf: Anonymous

Is the Curtain Wall Mullions Category turned off in the View?

Nachricht 3 von 17
Anonymous
als Antwort auf: barthbradley

I checked my visibility settings, and everything seems to be checked! I also checked the hidden layers and nothing is hidden.

Nachricht 4 von 17
barthbradley
als Antwort auf: Anonymous

post the file

Nachricht 5 von 17
cbcarch
als Antwort auf: Anonymous

Does the curtainwall span from Ground Level to the Roof? Or do you have separate CWs that span from floor to floor?

If you have a single CW, then a visibility setting in certain views is likely the problem.



If you have many CWs, then it could be a Type that you used did not have a mullion type specified, or something else wrong with it.

Cliff B. Collins
Registered Architect The Lamar Johnson Collaborative Architects-St. Louis, MO
Nachricht 6 von 17
barthbradley
als Antwort auf: Anonymous

Lower or raise your View Range Cut Plane a tad.







Nachricht 7 von 17
martijn_pater
als Antwort auf: cbcarch


@cbcarch wrote:

...or something else wrong with it.


That one solved it j/k^^. Do the mullions show in a 3d view on this level?

Nachricht 8 von 17
barthbradley
als Antwort auf: Anonymous




My money is on View Cut Plane cutting through the Mullions in the Plan View.

Nachricht 9 von 17
Anonymous
als Antwort auf: barthbradley

Heres my file. If you could change it and tell me whats wrong it'd be very helpful!

Nachricht 10 von 17
ToanDN
als Antwort auf: Anonymous

which floors do you have the issue?
Nachricht 11 von 17
Anonymous
als Antwort auf: ToanDN

At least 23 and 27. Not sure if theres others yet.

Nachricht 12 von 17
barthbradley
als Antwort auf: Anonymous

Edit your View Range and change the Cut Plane height. Works like a charm.

Nachricht 13 von 17
Anonymous
als Antwort auf: barthbradley

To what? I've never been in this part of Revit

Nachricht 14 von 17
barthbradley
als Antwort auf: Anonymous

couple of inches works for me.

Nachricht 15 von 17
ToanDN
als Antwort auf: Anonymous

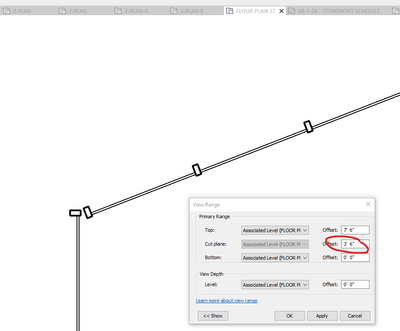

Adjust your cut plane a bit so that it doesn't cut right at the horizontal mullion.






Nachricht 16 von 17
Anonymous
als Antwort auf: ToanDN

Thank you guys so much!

Nachricht 17 von 17
barthbradley
als Antwort auf: Anonymous


@Anonymous wrote:

Thank you guys so much!




I think you ought to buy a celebratory round of Solution Credits for us all.



Bottoms up!
