What does the "Draw in Foreground" for Symbolic Lines do?

6 ANTWORTEN 6
GELÖST
Antworten
Nachricht 1 von 7
HaiderAlghifary
1952 Aufrufe, 6 Antworten

What does the "Draw in Foreground" for Symbolic Lines do?

Inside a family, you can check or uncheck the Draw in Foreground for Symbolic Lines (not model lines).



But what does it do?

I tried to find any documentation on it, with no luck.



It is checked by default, and I had a case where I benefited from unchecking it.

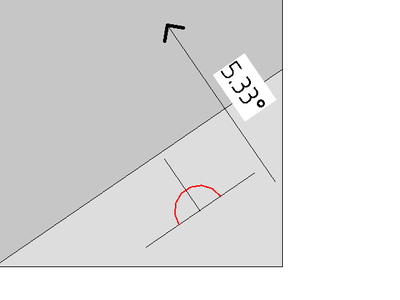

Here is with checked: I got a family hosted on a sloping floor






and here is with Draw in Foreground unchecked: the part that previously got cut away by the sloped floor is now visible.




Please note that, for this to work, I had to place the red lines on another reference plane than the level plane, plus I had to raise it above the level-level so that it wouldn't get buried under the sloping floor.



For reference; Here is an example where the slope is extremely steep, and as you see the red circle got buried.










To sum it up: Draw in Foreground for Symbolic Lines, what does it do?

6 ANTWORTEN 6
Nachricht 2 von 7
lucdoucet_msdl
als Antwort auf: HaiderAlghifary


@HaiderAlghifary wrote:

Inside a family, you can check or uncheck the Draw in Foreground for Symbolic Lines (not model lines).



But what does it do?

I tried to find any documentation on it, with no luck.

Here's a help article with examples:



About Masking Regions in Model Families

Hope this helps,



-luc

Nachricht 3 von 7

Hi @lucdoucet_msdl



I have seen this article, and it wasn't relevant to my case. I read it again just to be sure.



Please take a look at the provided revit file (2021) and you can see for yourself.

The behaviour is the opposite; if Draw in Foreground is off, then it works, not the other way around.

Also, I am checking this checkbox for Symbolic lines. The article you posted spoke only of Masking Regions.



Nachricht 4 von 7
ToanDN
als Antwort auf: Haider_of_Sweden


@Haider_of_Sweden wrote:

Hi @lucdoucet_msdl



I have seen this article, and it wasn't relevant to my case. I read it again just to be sure.



Please take a look at the provided revit file (2021) and you can see for yourself.

The behaviour is the opposite; if Draw in Foreground is off, then it works, not the other way around.

Also, I am checking this checkbox for Symbolic lines. The article you posted spoke only of Masking Regions.




I treat Foreground as hybrid 2D symbolic/model lines and Background as hybrid symbolic/annotation lines.  They could have used some better wording instead of Foreground and Background though.

Nachricht 5 von 7
Haider_of_Sweden
als Antwort auf: ToanDN


@ToanDN wrote:

treat Foreground as hybrid 2D symbolic/model lines and Background as hybrid symbolic/annotation lines.  They could have used some better wording instead of Foreground and Background though.

Aha.. So if I understand you correctly, no matter the linetype (symbolic or model), if I have Foreground checked either linetype behaves like model lines, ie hidden if physically hidden, and if Foreground is unchecked either linetype behave like symbolic/annotation lines and hence visible?



If yes to above, then at least the wording should be the other way around, no?



(edit: corrected Background to Foreground)

Nachricht 6 von 7
ToanDN
als Antwort auf: Haider_of_Sweden


@Haider_of_Sweden wrote:


Aha.. So if I understand you correctly, no matter the linetype (symbolic or model), if I have Foreground Background checked either linetype behaves like model lines, ie hidden if physically hidden, and if Foreground is unchecked either linetype behave like symbolic/annotation lines and hence visible?

Yes.



If yes to above, then at least the wording should be the other way around, no?

Perhaps.




Nachricht 7 von 7
philsogood
als Antwort auf: HaiderAlghifary

hi

the first part of your explanation is the solution of my problem.... thank for for explaining so clearly "the draw in foreground" option!! :leicht_lächelndes_Gesicht:

Phil
