What do storefront shape handles do?

11 ANTWORTEN 11
GELÖST
Antworten
Nachricht 1 von 12
PDSF
578 Aufrufe, 11 Antworten

What do storefront shape handles do?

We are always adjusting the profile of storefronts so that (say) doors hit the floor but the sidelights do not. There are grips, or shape handles or whatever you want to call them, on either side of the storefront. Dragging them doesn't change anything, except that you can see the "extents" of the storefront change in plan (but nothing else changes). What are these for and do they have any use at all?




11 ANTWORTEN 11
Nachricht 2 von 12
jay_colcombe
als Antwort auf: PDSF

NA

Jay Colcombe

Autodesk Certified Instructor
Revit Architecture & Structure Certified Professional
AutoCAD Certified Professional
B.Sc. Hons Civil & Structural Engineering

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
Nachricht 3 von 12
jay_colcombe
als Antwort auf: PDSF

My understanding is that if reference planes (If you require shape handles in 3D views, use reference lines instead of reference planes) are used and set to anything other than “Not a reference” you can get a shape handle, but in more instances these planes are controlled by Parameters that drive the Dimension so are rendered redundant.

I do recall something about a nested component's Shape Handles don't work in a Family so as this is made up of many elements it could be that!

Jay Colcombe

Autodesk Certified Instructor
Revit Architecture & Structure Certified Professional
AutoCAD Certified Professional
B.Sc. Hons Civil & Structural Engineering

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
Nachricht 4 von 12
blank...
als Antwort auf: PDSF


@PDSF wrote:

Dragging them doesn't change anything




Works for me, how did you create the storefront i.e. how did you edit it to that shape?

Nachricht 5 von 12
jay_colcombe
als Antwort auf: blank...

On creating the storefront it works but as the poster states, when there are different levels within it some shape handles appear redundant and do not influence the element directly.

To create that arrangement you add another mullion line at the bottom of the side window levels and use the Modify Tab to delete unwanted frame lines and mullions.

Jay Colcombe

Autodesk Certified Instructor
Revit Architecture & Structure Certified Professional
AutoCAD Certified Professional
B.Sc. Hons Civil & Structural Engineering

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
Nachricht 6 von 12
blank...
als Antwort auf: jay_colcombe


@jay_colcombe wrote:

To create that arrangement you add another mullion line at the bottom of the side window levels and use the Modify Tab to delete unwanted frame lines and mullions.


This is what I'm unclear about, even with your explanation. You can't delete panels, and you can't delete border grids. How are you getting those "fantom" outlines of storefront?

I'd delete unnecessary mullions and replace panel with the same wall type. This leaves me with normal four shape handles that stretch everything.






Nachricht 7 von 12
jay_colcombe
als Antwort auf: blank...

@PDSF You are probably best positioned to reply to this!

I assumed it was one Storefront from the explanation?

Jay Colcombe

Autodesk Certified Instructor
Revit Architecture & Structure Certified Professional
AutoCAD Certified Professional
B.Sc. Hons Civil & Structural Engineering

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
Nachricht 8 von 12
ToanDN
als Antwort auf: PDSF

The shape handle controls the top and base of the curtain wall, exactly like those of a basic wall.  Based on your image, the storefront curtain wall has been profile edited so that the original shape handle has no effect (again, same as wall).  You can either reset the profile or edit profile and change the shape.

Nachricht 9 von 12
blank...
als Antwort auf: ToanDN


@ToanDN wrote:

Based on your image, the storefront curtain wall has been profile edited so that the original shape handle has no effect

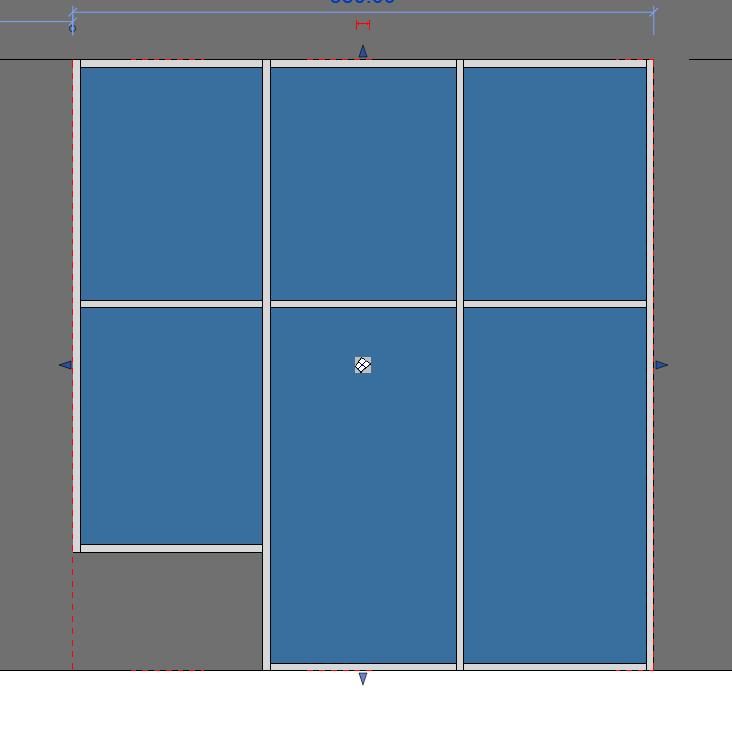

But, they work for me even when I edit the profile. In all four directions.Store.jpg
