Weird roof joining issue

15 ANTWORTEN 15
GELÖST
Antworten
Nachricht 1 von 16
simsekmelih2
539 Aufrufe, 15 Antworten

Weird roof joining issue

Hello, I hope you're all having a fantastic day! I do not know how to explain my issue besides screenshots, so here they are






Basically, I want to get rid of that weird extension to the other side of the roof. I tried using vertical opening to clear out that area, but it did not work. Any suggestion is appreciated, thanks a lot!

15 ANTWORTEN 15
Nachricht 2 von 16
barthbradley
als Antwort auf: simsekmelih2

Post your RVT file and I'll show you.

Nachricht 3 von 16
ToanDN
als Antwort auf: simsekmelih2

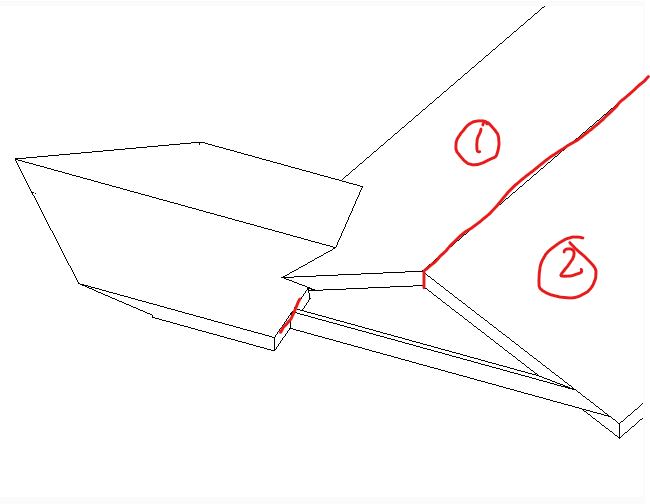

Make the main roof as 2 pieces and join the dormer roof to one.








Nachricht 4 von 16
simsekmelih2
als Antwort auf: ToanDN

Thanks a lot, worked very well! I also want to remove the red part, is there a smarter/easier way to do it without changing the footprint of the roof?

Nachricht 5 von 16
barthbradley
als Antwort auf: simsekmelih2

Weird Roof.png



There's more than one way to skin a cat.



Screenshot shows two differently pitched roofs - having  different plate heights (Offset for Roof Base) - intersecting. Revit is smart enough to do this as a mono roof.

Nachricht 6 von 16
ToanDN
als Antwort auf: simsekmelih2


@simsekmelih2 wrote:

Thanks a lot, worked very well! I also want to remove the red part, is there a smarter/easier way to do it without changing the footprint of the roof?


What red part?  Can you share a pic?

Nachricht 7 von 16
simsekmelih2
als Antwort auf: ToanDN

Ups, the image was not uploaded, sorry!



This area:Capture.PNG

Nachricht 8 von 16
simsekmelih2
als Antwort auf: barthbradley

Revit is surely smart enough, but I am not sure if I am :leicht_lächelndes_Gesicht: Thanks a lot, I will give it a go
Nachricht 9 von 16
barthbradley
als Antwort auf: simsekmelih2

Roof by Extrusion for that part.



Weird Roof 2.png



Weird Roof 3.png

Nachricht 10 von 16
ToanDN
als Antwort auf: simsekmelih2

Like this?  If so, it is easier to model it as one roof as @barthbradley said.  See attached 2022 file.













Nachricht 11 von 16
simsekmelih2
als Antwort auf: barthbradley

I am a bit confused now though, I am trying to remove/delete that part of the roof, not trying to add new part

Nachricht 12 von 16
simsekmelih2
als Antwort auf: ToanDN

Exactly, can you also share the blueprint, I couldn't recreate the same...



edit: Just saw your attachment, checking it

Nachricht 13 von 16
barthbradley
als Antwort auf: simsekmelih2


@simsekmelih2 wrote:

I am a bit confused now though, I am trying to remove/delete that part of the roof, not trying to add new part




Then don't do roof by extrusion.   See my first Screenshot. That's all you need; right?

Nachricht 14 von 16
simsekmelih2
als Antwort auf: barthbradley

Thanks a lot for your time and help, but why do I have it this shape? Is it because my roofs are not perpendicular to each other? Because I am literally adjusting blueprints in the Revit file attached aboveCapture.PNGFxfG8TZRK9.png



edit: meh, I increased offset from roof base and it's fixed. Thank you so much for your patience! :leicht_lächelndes_Gesicht:




Nachricht 15 von 16
ToanDN
als Antwort auf: simsekmelih2

You can orient the roof however you want.








Nachricht 16 von 16
simsekmelih2
als Antwort auf: ToanDN

Thanks a lot for your time and patience with me ^^
