Weird grey patch in all imported CAD files

8 ANTWORTEN 8
GELÖST
Antworten
Nachricht 1 von 9
wisedrawing
704 Aufrufe, 8 Antworten

Weird grey patch in all imported CAD files

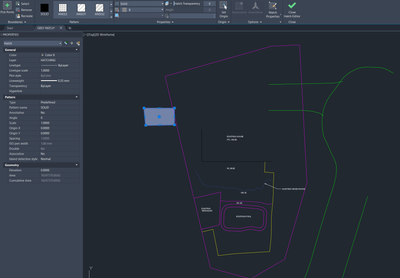

Has anyone seen this in their linked CAD files, it does not matter if I make the CAD file in my suite and import it, or if I use the surveyor CAD file (through mine to rescale) its always there. Obviously its not in the CAD file itself



Darren

grey patch.png

8 ANTWORTEN 8
Nachricht 2 von 9
barthbradley
als Antwort auf: wisedrawing

Strange. Like a watermark. Let's have a look at it.  Post the DWG here.

Nachricht 3 von 9
wisedrawing
als Antwort auf: barthbradley

dwg as export from the revit file back to CAD, I can't seem to select it, it does not appear in the original CAD file only when you link it to Revit and it only shows in revit and then now when I export from revit

Nachricht 4 von 9
barthbradley
als Antwort auf: wisedrawing

Explode and delete it.



It's a Hatch





Nachricht 5 von 9
barthbradley
als Antwort auf: wisedrawing






Nachricht 6 von 9
wisedrawing
als Antwort auf: barthbradley

That does work but it means I have to load up once, export, explode and reload again? - its very strange

Nachricht 7 von 9
barthbradley
als Antwort auf: wisedrawing

I'm not totally following you, but if you don't want to get rid of it, then turn the Hatch Layer off.



...also "Object A" Layer.

Nachricht 8 von 9
barthbradley
als Antwort auf: wisedrawing


Nachricht 9 von 9
wisedrawing
als Antwort auf: barthbradley

ha now we are talking



just FYI this is linked not imported so anything I needed to do to the file I have to do outside Revit, I also prefer not to import and explode CAD in Revit. So what I meant was that once I import the CAD then this grey showed up and you are correct if I export to CAD and then explode and then delete and then reload the link it actually does go away, but that seems long a long process for a little bug.



you last idea however fixes it and gave me another little skill for manipulating the linked CAD files



Thanks



Darren
