Wall wrapping never show layers

7 ANTWORTEN 7
Antworten
Nachricht 1 von 8
m.pharamawy
329 Aufrufe, 7 Antworten

Wall wrapping never show layers

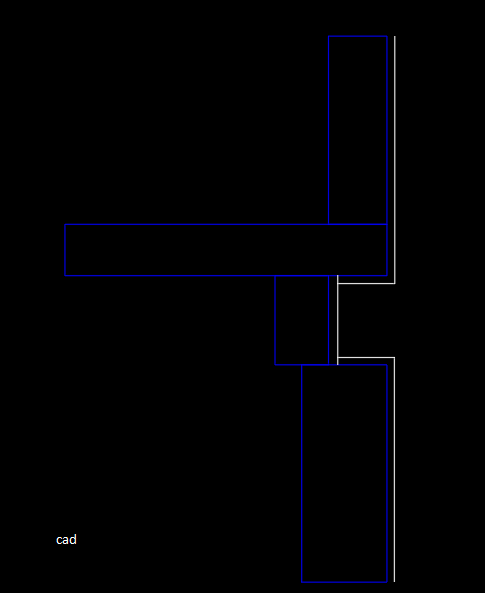

As per the attached 3d section, it shows that the finishing material is not wrapped properly, the layers are not wrapped like it's shown in the other picture snapped from autocad. i drew the method which i need to reach in the autocad.



i also attached the revit file



please helpice_screenshot_20170301-093957.pngice_screenshot_20170301-093936.pngice_screenshot_20170301-100253.png

7 ANTWORTEN 7
Nachricht 2 von 8
ToanDN
als Antwort auf: m.pharamawy

Are we looking at a section or a plan?
Nachricht 3 von 8
m.pharamawy
als Antwort auf: ToanDN

section
Nachricht 4 von 8
m.pharamawy
als Antwort auf: ToanDN

I ATTACHED NOW THE REVIT FILE



THANKS FOR RESPONDING



Nachricht 5 von 8
RDAOU
als Antwort auf: m.pharamawy

@m.pharamawy



File was not attached



  1. did u check the box for warp at inserts?
  2. the insert you have there; is it an in-place void, a wall sweep or a family? (Behavior differs)



Note: even if wrapping is enabled; it does not apply to:in sections...the Layers at the top(header) and bottom (sill) will not wrap the same as u see in plan view

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 6 von 8
m.pharamawy
als Antwort auf: RDAOU

OK , here is the rvt file, please tell me how can i reach the same as the cad sketch..



thanks

Nachricht 7 von 8
ToanDN
als Antwort auf: m.pharamawy

You could create parts from the wall layers, split them, turn on shape handle and stretch to the size you need, then change the material to match the finish.  It is quite time consuming and you need to be familiar and comfortable with editing parts.



If it was me, I just paint the surfaces to match the finish materials, and add 2D detail components to the section and detail.

Nachricht 8 von 8
m.pharamawy
als Antwort auf: ToanDN

Although i cannot consider this is a solution, but thanks very much for the idea and the respond
