Wall wrap at join

Is it possible to get finish layers of differing thickness and finish to wrap at core aligning walls?  I have tried this solution (http://forums.augi.com/showthread.php?134582-Can-t-get-brick-to-wrap-wall-join) but it didn’t work.  I have experimented with wraps and wrap joins, but cannot get the intended result.



See below for explanation.






3D image for intent clarification




Wall properties are below








Thanks much!



8 ANTWORTEN 8
Nachricht 2 von 9
cbcarch
als Antwort auf: chughes

Not sure if you have already done so, but try clicking "wrapping at ends" and set to Exterior ( or both?).

Cliff B. Collins
Registered Architect The Lamar Johnson Collaborative Architects-St. Louis, MO
Nachricht 3 von 9
chughes
als Antwort auf: cbcarch

I have tried.  It doesn’t work.  It will wrap at the unattached end, but not at the join between the two aligned walls.

Nachricht 4 von 9
barthbradley
als Antwort auf: chughes

I think you're speaking to one of my biggest frustrations. I just resolve it by just placing a very short perpendicular wall composed of the layers I need to "wrap".   It's always a pain in the butt.

Nachricht 5 von 9
barthbradley
als Antwort auf: chughes

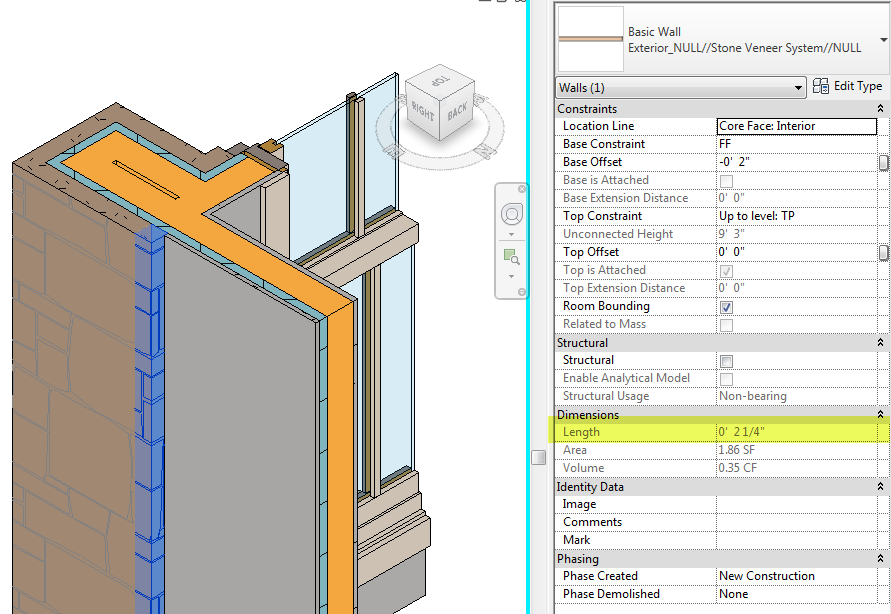

Wrap.png.

Nachricht 6 von 9
ennujozlagam
als Antwort auf: chughes

wall wrap





Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 7 von 9
ennujozlagam
als Antwort auf: chughes

wall wrap









Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 8 von 9
chughes
als Antwort auf: barthbradley

This is as close of a solution as I can get.




Thanks Barth!

Nachricht 9 von 9
chughes
als Antwort auf: ennujozlagam

@ennujozlagam I tried the proposed solution, before and after your post.  I just wind up with a hot mess. :verwirrtes_Gesicht:  The structure wall layer of the short wall wants to push all the way through to the finishes on both sides.
