Wall-subtypes wrong thickness

2 ANTWORTEN 2
Antworten
Nachricht 1 von 3
hve-architecten
376 Aufrufe, 2 Antworten

Wall-subtypes wrong thickness

Can anybody help me out how to show correct lineweights in a floorplan/section?

Problem: different layers of the wall (thermal/structure/finish) do NOT show the correct line thickness.

-insulation should be pen 3

-finish should be pen 4

-structure should be pen 5

In the attached picture the thermal layer is drawn as pen 5 and not pen 3.



What is going wrong and if so is this a malfunction of Revit basic wall functionality?Knipsel.JPG

2 ANTWORTEN 2
Nachricht 2 von 3

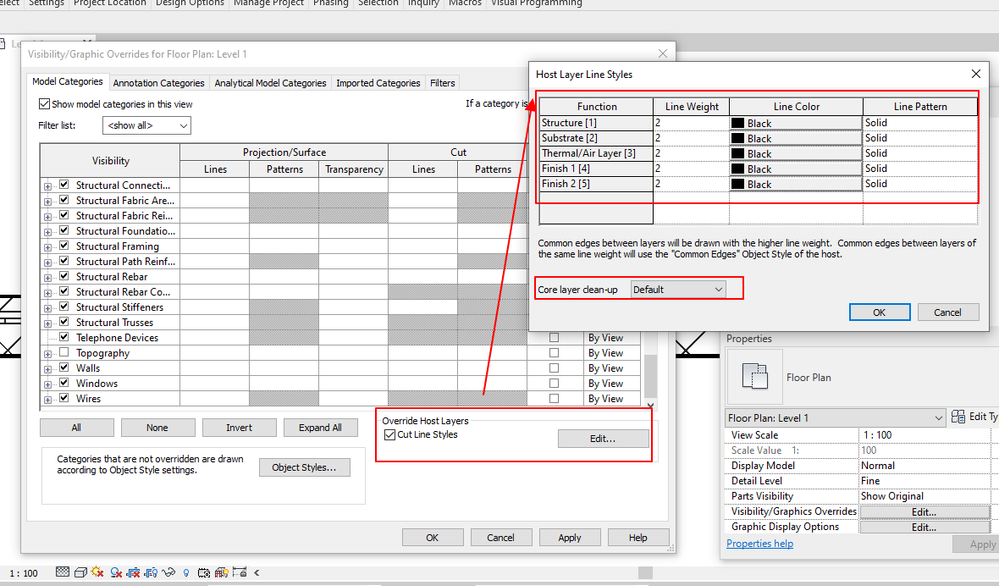

should I understand that the VGO settings  from Override Host Layers>Cut Line Styles do not work for you?

Image 1.png





Constantin Stroescu

EESignature

Nachricht 3 von 3

What i just discovered:

-VGO for model categories: apropriate wall subcategorie i set the cut linestyle to the smallest lineweight in the basic wall (pen 3)

-Override host layer is active (core layer cleanup is at default)



Now i see the correct linetypes being displayed but it only works with a combination of view template-vgo override for walls and override host layer active.



Thanks for thinking with me!


-
