Wall schedule - Keeping materials in correct order

16 ANTWORTEN 16
GELÖST
Antworten
Nachricht 1 von 17
marek_obajtek
1086 Aufrufe, 16 Antworten

Wall schedule - Keeping materials in correct order

How can you sort materials in the wall schedule without referencing wall section views? I found a tutorial that suggests sorting by key value, but the same material appears in different locations within other walls. Or even twice like Gypsum Wallboard.












16 ANTWORTEN 16
Nachricht 2 von 17
jay_colcombe
als Antwort auf: marek_obajtek

I see you have "Itemise Every Instance" ticked in the sorting Tab this will show multiple references

If you want each layer of the Wall Referenced in order you would need to have an individual material for each one so if you have 2 layers of plasterboard you need to 2 Plasterboard materials with an individual reference to each

Jay Colcombe

Autodesk Certified Instructor
Revit Architecture & Structure Certified Professional
AutoCAD Certified Professional
B.Sc. Hons Civil & Structural Engineering

If you find my post interesting, feel free to give a Kudo.
If it solves your problem, please click Accept to enhance the Forum.
Nachricht 3 von 17
barthbradley
als Antwort auf: marek_obajtek

Are you wanting to schedule R-Values of Wall Assemblies?



Wall Assy2.pngWall Assy.png





Nachricht 4 von 17
marek_obajtek
als Antwort auf: marek_obajtek

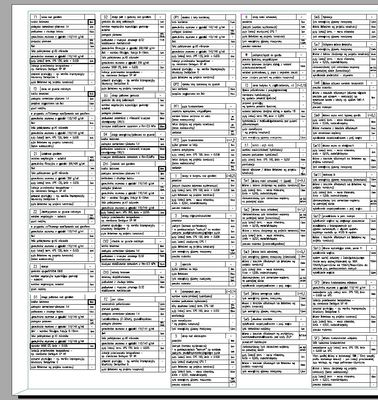

I literally want to copy this list of layers to sheets:


After years of using AutoCAD, I'm trying to perform my basic tasks in Revit, and my first problem is the list of layers in all the walls in the project. In this case, the order on the list is important. Since I can't tag membranes, I can't replace my lists with images/sections. Duplicating layers due to required fire resistance has already cluttered the project. I haven't gotten to Dynamo scripts yet, but they would also work semi-automatically. Keynotes seems to work the same.






Nachricht 5 von 17
barthbradley
als Antwort auf: marek_obajtek

Ah! So the issue is membrane layers that have no thickness. Create Assembly and an MTO under Assembly.

Nachricht 6 von 17
barthbradley
als Antwort auf: marek_obajtek

Assy MTO.png

Nachricht 7 von 17
barthbradley
als Antwort auf: marek_obajtek

Actually, if a Wall is using the same Material in different layers, that doesn't work either. You need to Duplicate with Assets the Material that is being used in another layer.



Assy MTO 3.pngAssy MTO 4.png









Nachricht 8 von 17
marek_obajtek
als Antwort auf: marek_obajtek

Do you have them in the correct order? My MTO has misarranged the order.

If Gypsum Wallboard appears in assembly twice - it only shows one record in MTO.






Nachricht 9 von 17
barthbradley
als Antwort auf: marek_obajtek

Material doesn't what wall layer it's on. You add a Parameter (maybe an Integer Type) and input a number and sort by that number.

Nachricht 10 von 17
barthbradley
als Antwort auf: marek_obajtek

Wall Type Image.png

Nachricht 11 von 17
marek_obajtek
als Antwort auf: marek_obajtek

Luckily, I found a solution that uses a modified file provided by "ROCKS engineering".

Here's the link to the video: https://www.youtube.com/watch?v=KgaYlyIVnxo

I added a new project parameter for walls called "multi-line text."

Their file lists all of the existing layers in a wall, in order, and includes chosen parameters (here thickness).

I inserted this data into my new parameter.

I drew the walls that I'm interested in on a new Phase.

I created a filter in Regular Schedule by Phase.

I inserted the filter into a sheet.


List includes duplicates and membranes.




Nachricht 12 von 17
barthbradley
als Antwort auf: marek_obajtek

Cool. Thanks for sharing.



BTW: There is a way to keep the Materials ordered correctly if you Create Parts from Walls and include the "Layer Index" Parameter Field in the Parts MTO Schedule.



Parts Materials Layer Index.png

Layer Index.png

Nachricht 13 von 17
barthbradley
als Antwort auf: marek_obajtek


@marek_obajtek wrote:

...

I drew the walls that I'm interested in on a new Phase.

...






One other comment:



It sounds like you are doing a "Legend Phase".  We do as well. The Phase that you put the "Legend" components in is in a pre-Existing Phase (named maybe "Legend Phase") and those components that are created in this Phase are demo'd in a Phase immediately following. I suggest that that demo Phase for Legend components be another Phase that precedes your Project's true Existing Phase so that they aren't recognized as part of the actual Project (e.g. in QTOs, etc.).  So, create TWO Phases that exist BEFORE the true Existing and Construction Phases begin -- one Phase to create the Legend components and a subsequent Phase to demolish the Legend components.



FWIW.

Nachricht 14 von 17
marek_obajtek
als Antwort auf: barthbradley

As @jay_colcombe replied:



"If you want each layer of the Wall Referenced in order you would need to have an individual material for each one so if you have 2 layers of plasterboard you need to 2 Plasterboard materials with an individual reference to each"



Indexes need layers duplication.



600x600_NIDA Sciana 150+C50 woda.jpg



Nachricht 15 von 17
barthbradley
als Antwort auf: marek_obajtek

That's just plain wrong. But whatever. Believe what you want. You don't need to ping me.



Layer Index2.png







Nachricht 16 von 17
marek_obajtek
als Antwort auf: barthbradley

Sorry it's 6AM and I just noticed field "layer index". I thought you placed manually constructed numbers in some sort of custom field which requires duplicating materials which all know is bad.

Nachricht 17 von 17
barthbradley
als Antwort auf: marek_obajtek

@marek_obajtek:  I think you're missing the nuances here.  The nuances are the TYPES of schedules.  As you can see in this thread, I too said that you'd have to duplicate materials, but I was talking about an ASSEMBLY Wall Schedule that can report zero-thickness layers, which I understood to be the objective (per your Message #4). Clearly, the solution you accepted does not report zero-thickness layers, so I have to assume that reporting zero-thickness layers is NOT a big concern after all.  A Parts Schedule will allow you to utilize the "Layer Index" Parameter to "keep materials in [their] correct order" (as per the title of your thread).  Parts Schedules was not mentioned as an option until I brought it up in Message #12.
