Wall plasetering doubt

Anonymous

Wall plasetering doubt

Anonymous
Not applicable

Hii

Im really new to revit.

How do make the core and plastering work properly in this joint.

In wall joint setting i get only 2 settings





Screenshot 2021-06-11 210333.pngScreenshot 2021-06-11 210411.png

0 Likes
Reply
Accepted solutions (2)
532 Views
5 Replies
Replies (5)

RDAOU
Mentor
Mentor
Accepted solution

@Anonymous



Wall layers join based on the following:

  1. The Layer function defined under Type Properties >> Structure
  2. The Layer placement within the Core or outside the core

Example Below:

Type 1:

  • Plaster layer - Function: Finish [5] - Placed outside the Core
  • CMU Layers - Function: Substrate [2] and placed in the Core

Type 2:

  • Plaster layer - Function: Finish [5] - Placed outside the Core
  • Air Gap and CMU Layers - Function: Substrate [2] and placed in the Core
  •  Concrete Layer Function - Function: Structure [1] and placed in the Core



Those are not universal settings, sometimes one combination doesn't work and one would need to try another

W1.png              W2.png






YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


0 Likes

Anonymous
Not applicable

Thanks alot rd.rd



0 Likes

Anonymous
Not applicable

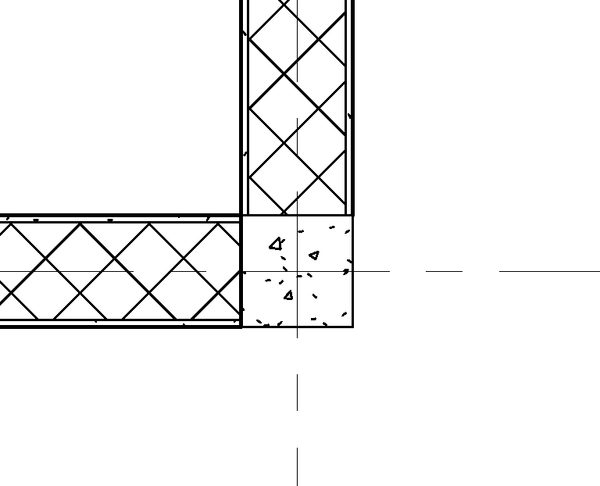

Is there a way to get the plaster to go around the structural column ?

0 Likes

RDAOU
Mentor
Mentor
Accepted solution

@Anonymous



If it Wraps around the column meaning the column is entirely embedded in wall...

Option 1:

Reduce the size of the column a value = plaster thickness? this way when you join geometry the wall plaster will wrap the column



Option 2:

you can edit the column family and add a plaster layer (another extrusion)



Option 3: (Only if you are familiar with Parts)

Converting the wall to parts allow you to control layers separately  by enabling shape handles / grips

YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Anonymous
Not applicable
Thanks you so much for the quick reply!
i am actually taking a test for a job interview.
