Wall Panels No Show in Elevation

8 ANTWORTEN 8
GELÖST
Antworten
Nachricht 1 von 9
yiming.yang1
516 Aufrufe, 8 Antworten

Wall Panels No Show in Elevation

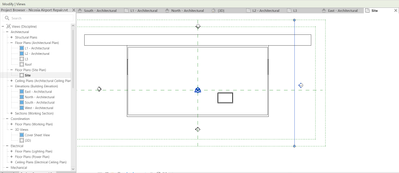

Hi guys, I'm using wall division to create panel patterns, it does show up in 3D view, but not in elevation views... screenshots are attached. Really appreciate any insights or help!










8 ANTWORTEN 8
Nachricht 2 von 9
Alfredo_Medina
als Antwort auf: yiming.yang1

It seems to me that you have done this design using Parts. In the elevation view where you don't see your design, most likely the visibility of parts is disabled. In the properties of the view, find Parts Visibility and select Show Parts.


Alfredo Medina _________________________________________________________________ ______
Licensed Architect (Florida) | Freelance Instructor | Profile on Linkedin
Nachricht 3 von 9
yiming.yang1
als Antwort auf: Alfredo_Medina

Thank you Alfredo! It works, but also another problem came. So I excluded some parts, but it still shows up in the elevation view. I have attached the screenshot here.




Nachricht 4 von 9
Alfredo_Medina
als Antwort auf: yiming.yang1

Hmm.. I wouldn't be able to help on that second question.



Just a sidenote: doing this design usng Parts seems too difficult. You could do this with a few types of panels that change randomly. Perhaps this video can give you some ideas how to do this faster?



https://youtu.be/_8Md-Vrw8PU?si=_nsYh9ia-GstUk5r










Alfredo Medina _________________________________________________________________ ______
Licensed Architect (Florida) | Freelance Instructor | Profile on Linkedin
Nachricht 5 von 9
ToanDN
als Antwort auf: yiming.yang1

You can select Excluded parts in any parts view but they are not actually visible.  What you see there is the element behind the excluded parts with the same material.



View with an excluded part:




The excluded part can still be selected and highlighted:












Nachricht 6 von 9
yiming.yang1
als Antwort auf: ToanDN

thank you for your reply ToanDN! yeah, I noticed that the excluded parts could be still selected. but there's no solid component behind this, so it should be clear glass and interior, but currently I could see them.
Nachricht 7 von 9
ToanDN
als Antwort auf: yiming.yang1


@yiming.yang1 wrote:
thank you for your reply ToanDN! yeah, I noticed that the excluded parts could be still selected. but there's no solid component behind this, so it should be clear glass and interior, but currently I could see them.

Select the excluded part and temporary hide it, then select the element behind and see what it is.  You can share your model here if you want.

Nachricht 8 von 9
yiming.yang1
als Antwort auf: ToanDN

Hi ToanDN, please see the attached Revit file. Thanks for your help!

Nachricht 9 von 9
ToanDN
als Antwort auf: yiming.yang1


@yiming.yang1 wrote:

Hi ToanDN, please see the attached Revit file. Thanks for your help!


Nothing attached.
