Wall frame

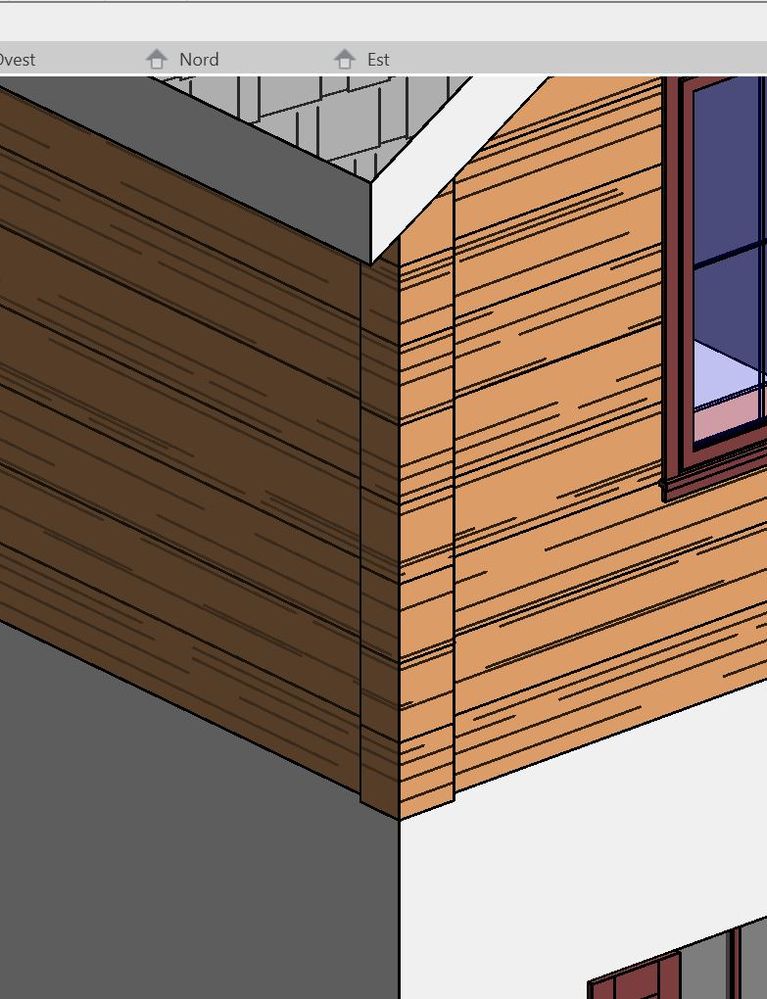

Hello, someone can say me how can I pot this wall frame at angle of the walls and the frame between stone wall and plaster?

For the first have to put an architectual column sizer than wall?



.rvt file attached.



Thank's

Wall frame.jpg

14 ANTWORTEN 14
Nachricht 2 von 15
fred2193
als Antwort auf: Anonymous

Hey :leicht_lächelndes_Gesicht:

Can you maybe attach a rough sketch of how you want it to look? i'm not sure exactly how you want to out it at an angle. just wanna make sure that I give you correct answers (in case I am able to :zwinkerndes_Gesicht: )



Best regards

Nachricht 3 von 15
Anonymous
als Antwort auf: fred2193

In this way.



I can't rotate the pat, right?


Nachricht 4 von 15
fred2193
als Antwort auf: Anonymous

I did an in place family extrusion, but i am not sure if this is what you were looking for :leicht_lächelndes_Gesicht:

I'm sorry if i misunderstood your request. Please let me know if I did :leicht_lächelndes_Gesicht:


Nachricht 5 von 15
fred2193
als Antwort auf: fred2193

ah sorry, i didn't read your last message right. give me a couple of minutes. sorry :leicht_lächelndes_Gesicht:

Nachricht 6 von 15
Anonymous
als Antwort auf: fred2193

@fred2193 thank's for your time.



I put architecture column and seems ok but don't know if is the right way to draw.

After I put a vertical pat to seem the same texture (fisrt and second pic).



I ask also an other question: the frame between stone and white wall (pic 3).



updated .rvt file attached.



Vertical color.jpgHouse 2.jpg



Wall frame.jpg

Nachricht 7 von 15
martijn_pater
als Antwort auf: Anonymous

Did I understand correctly that you want the pattern rotated on the architectural column?
Because you can to rotate a model pattern on a column, however you would have to do that within the column family. And if it's not there already transfer the material to your column family...

Nachricht 8 von 15
fred2193
als Antwort auf: Anonymous

I have used hatchkit to rotate a duplicate of the pattern.

Let me know if it works in the attatched file



Hatchkit is free to download from the autodesk appstore, and allows you to rotate fill patterns very easily :leicht_lächelndes_Gesicht:



fixed pattern.JPG

Nachricht 9 von 15
Anonymous
als Antwort auf: martijn_pater

@martijn_pater



"Because you can to rotate a model pattern on a column, however you would have to do that within the column family. And if it's not there already transfer the material to your column family..."





If I undrestand I have to go in family and edit. But the material is not editable.






Nachricht 10 von 15
Anonymous
als Antwort auf: Anonymous

@fred2193  thank's very much!



But you do this?

i know there's not duplicate command. If I go in pat the previous is replace, not duplicate.

But at the begin you do put column as me or extrude something as you sayed before?



Thank's




Nachricht 11 von 15
fred2193
als Antwort auf: Anonymous

When you choose fill pattern for a material, you can duplicate the fill pattern. name the new duplicated shingle pattern the desired name. after you have duplicated the pattern that needs to be rotated, open hatchkit and it should show in the browser, and from there you can rotate the pattern. then you should have two shingle patterns, one horisontal, and one vertical.



What i did was make an in place family as an extrusion (it was just a quick way to manually draw a corner profile inside the project



hope it makes sense:)

Nachricht 12 von 15
Anonymous
als Antwort auf: fred2193

@fred2193  to this say something?



Wall frame.jpg

Nachricht 13 von 15
martijn_pater
als Antwort auf: Anonymous

@AnonymousFYI The material was not editable there directly because it is controlled through a parameter in the family. If you click the small box (right there next to your red line box in your image) you can select which parameter this is or set this to none. You don't want to change it though. You just have to edit the material parameter in the "Family types". You can find it under create -> under properties -> family types (it is the symbol with the four boxes). Your material will be under Materials and Finishes. That said... creating a rotated pattern might be easier for you in this case. Is it joined geometry?

Nachricht 14 von 15
Anonymous
als Antwort auf: martijn_pater

@martijn_pater or in the other way in first pic, right?



Thank's a lot.





Wall frame_1.jpg



Wall frame_2.jpg

Nachricht 15 von 15
Anonymous
als Antwort auf: Anonymous

@martijn_pater  about this can you help me?



Thank's



Wall frame.jpg
