Good morning all. I have created two drafting pattern - filled regions that work perfectly for rigid insulation. I would like to add that pattern inside a wall to have it show when the wall is cut. It seems to rotate the pattern incorrectly applying either of the filled regions. Is there a setting to "not rotate" or something to get my cut pattern to show up properly inside the wall?
You can see the two filled regions I have created. One vertical and one horizontal. If I add either of those patterns to the cut pattern of the wall it shows as the "wall cut pattern" image on the left. I would like the one on the left to look like the one on the right. Is there a way to have the pattern rotate with the wall?? Thanks.
Regards Peter.
Gelöst! Gehe zur Lösung
Gelöst von Mike.FORM. Gehe zur Lösung

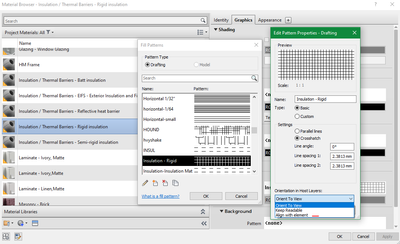

Edit the pattern type and switch it from orient to view --> align with element
Yes that is the standard Rigid Insulation filled region that was previously in the wall. I am trying to match CAD details and I managed to created both the horiz and vert filled region for the patterns I want. This seems like it should have been fixed so many years ago. Some things just boggle my mind about Revit. I know the "it's not AutoCAD argument" but this is not that. It's just plain functionality. Then people wonder why Revit does not look as good as AutoCAD.
I was hoping there was some way of doing this, but maybe not?? Thanks for the input.
Regards Peter.
Sorry, I edited my response. You can do it by changing the pattern to orient to view. I just almost never use that so completely forgot for a second.
Awesome. I changed it to "align with element" and it worked. I remembered that variable but couldn't remember whether it either works or where it was located. Thank you.
