Wall Bracing (TAG)

Hi Guys,



Is it possible to create this kind of TAG? The thing is, I have to change the brace element and his length manually



Any tip?



WALL BRACING.jpgGIB Naming Conventions.jpg

Tags (2)
13 ANTWORTEN 13
Nachricht 2 von 14
ToanDN
als Antwort auf: Anonymous

Are you tagging a Wall or something else?

Nachricht 3 von 14
Anonymous
als Antwort auf: ToanDN

Just Wall

I am linking the Architectural drawing to mine (Structural) and then I have to show that, but I am not allowed to change anything in the Architectural drawing (That's why I'm looking for something editable)

Nachricht 4 von 14
ToanDN
als Antwort auf: Anonymous

I would create a Generic Annotation symbol family with 2 labels as you show them.  The top label can be a Type parameter, the bottom label is for you to manually enter the value when place it in project views.  If you need a schedule, use Note block and select the symbol family.

Nachricht 5 von 14
barthbradley
als Antwort auf: Anonymous

Don't know if I'm following you. A tag can pull any information from the wall that you want - be it an instance or a type value. Sounds like you want a tag to pull a instance parameter value. You could use the OOTB "Comments" parameter and tag to pull that value, which, of course, you'd have to enter for each wall. However, if these are all unique Wall Types, tagging wouldn't require any user input; the tag would just pull each wall's unique designation (e.g. via a Type parameter value).

Nachricht 6 von 14
ToanDN
als Antwort auf: barthbradley

@barthbradley



FYI:  walls are in link file and OP said he cannot edit it.

Nachricht 7 von 14
barthbradley
als Antwort auf: ToanDN

Huh? How did you determine that from what he wrote, @ToanDN? Kind of makes sense of the question, though. Still...?

Nachricht 8 von 14
ToanDN
als Antwort auf: barthbradley

Oh he has a duplicated thread with the exact subject line.  I thought this was it.



https://forums.autodesk.com/t5/revit-architecture-forum/wall-bracing-tag/m-p/7344123#M161342

Nachricht 9 von 14
barthbradley
als Antwort auf: ToanDN

So you're not the Amazing Carnak? Amazing Carnac.jpg

Nachricht 10 von 14
Anonymous
als Antwort auf: ToanDN

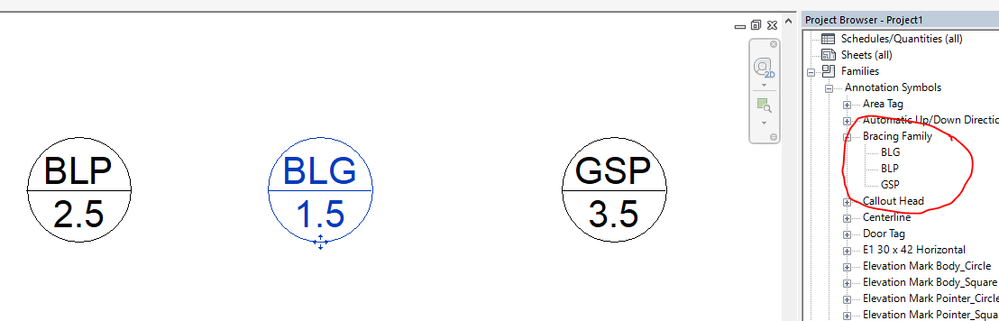

Something like this? I have no idea how to load it into my project...

Nachricht 11 von 14
Anonymous
als Antwort auf: Anonymous

I actually did something wrong, because if I change something in the "Bracing Family" it will change in all the other around the project.



I really dont know how to use this XD

Nachricht 12 von 14
ToanDN
als Antwort auf: Anonymous

Bracing Length should be an instance parameter, not type.






And create different types per your table.  Each type shall have an unique Bracing type, but the Bracing Length varies.




Nachricht 13 von 14
Anonymous
als Antwort auf: ToanDN

Amazing!!!

Thank you so much.



One more question, how can I load annotation symbols? Right now I'm opening the family and clicking in "Load into Project"

Nachricht 14 von 14
ToanDN
als Antwort auf: Anonymous

Open the folder and drag the family onto you project view. Or, go to Insert menu, Load family, and browse to the family location. Or, do what you did.
