visibility order according to phasing within one view

hi there!

I would like to have the demolished parts BEHIND the new construction.. ???

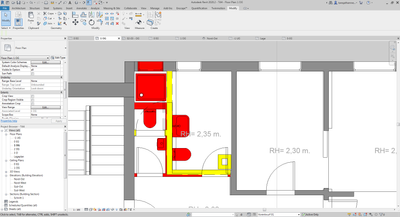

in the pic red is new, yellow demolished..

Thanks!




4 ANTWORTEN 4
Nachricht 2 von 5
Ahmed_Muharram
als Antwort auf: Anonymous

there is no draw order command in revit.

you have to work around it using view range and view depth

you can also use transparency to achieve the view you need

Ahmed Muharram, B.Sc, AEE, ACI, ACP
BIM Manager
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


Nachricht 3 von 5
Ahmed_Muharram
als Antwort auf: Anonymous

you might also use line work option if you want to hide some lines

Ahmed Muharram, B.Sc, AEE, ACI, ACP
BIM Manager
Did you find this post helpful? Feel free to Like this post.
Did your question get successfully answered? Then click on the ACCEPT SOLUTION button.

EESignature


Nachricht 4 von 5
Anonymous
als Antwort auf: Ahmed_Muharram

hi Ahmed,

I looked into your suggestions, while I am still relatively new in revit, I am not sure..

the thing is that I have 2 overlapping walls, one is new construction, the other is to be demolished.

The demolished one appears complete and the new is partially hidden behind, I would like to have it the other way around..

Nachricht 5 von 5
RobDraw
als Antwort auf: Anonymous

If this is for a sheet view, you might consider showing the demolition in a separate view for clarity.


Rob

Drafting is a breeze and Revit doesn't always work the way you think it should.
