Visibility of Intersection Line between Wall and Floor in 3D Model

5 ANTWORTEN 5
GELÖST
Antworten
Nachricht 1 von 6
ABapatS7HWK
1005 Aufrufe, 5 Antworten

Visibility of Intersection Line between Wall and Floor in 3D Model

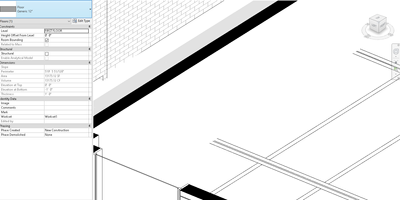

Hi, Intersection line between a basic wall and a generic floor in my 3D view is not visible. Despite checking my visibility settings, Could anyone advise on how to make this intersection line visible?  Thanks,


03 R.png

02 R.png

01 R.png

   



Thanks for the help, It worked, with Join tool. Now how can we make it for Topography and wall?




5 ANTWORTEN 5
Nachricht 2 von 6
ralphdenhaan
als Antwort auf: ABapatS7HWK

Hi,



- You can use the Cut/Join tool to cut/join the floor from the walls.

- Or adjust the profile of the floor around the walls.







Select Accept as Solution and Likes are always welcome.


Ralph den Haan, (Lazy) BIM Specialist


LinkedIn | LazyBIM Blog




Nachricht 3 von 6
ToanDN
als Antwort auf: ABapatS7HWK

Use Join Geometry (and Switch Join Order if needed).

Nachricht 4 von 6
ABapatS7HWK
als Antwort auf: ralphdenhaan

Worked!

Nachricht 5 von 6
ABapatS7HWK
als Antwort auf: ToanDN

Great, thanks. It worked. Now how can I make the intersection line appear for Topography and wall intersection? Join tool is not selecting topography.




Nachricht 6 von 6
ralphdenhaan
als Antwort auf: ABapatS7HWK

Hi,



Since you are working in Revit 2023 or earlier you can work with a Building Pad. With (Revit 2024 you can use the Cut tool or make a Mass Void).






Make a type with a Thickness of about 50mm and draw it around your foundation at the bottom Level for example:












Select Accept as Solution and Likes are always welcome.


Ralph den Haan, (Lazy) BIM Specialist


LinkedIn | LazyBIM Blog
