Views in Linked model

10 ANTWORTEN 10
Antworten
Nachricht 1 von 11
naomi2BHGT
678 Aufrufe, 10 Antworten

Views in Linked model

In my linked model have views set up that use scope boxes. I went to visibility Graphics and I changed the link display to "by linked view", however, the floor view I selected uses a scope box and instead the linked model shows the entire floor. Is there a way to get it to just show only what is in the scope box?

10 ANTWORTEN 10
Nachricht 2 von 11
barthbradley
als Antwort auf: naomi2BHGT

Did you actually apply the scope box to the view?



Scope Box to View.png



TIP: Turn on Annotation Crop in Plan Views.

Nachricht 3 von 11
naomi2BHGT
als Antwort auf: barthbradley

In the original model yes. When it is linked into another model those scope boxes are no longer accessible. I did not copy any scope boxes into the new project i'm linking to either.
Nachricht 4 von 11
barthbradley
als Antwort auf: naomi2BHGT
Nachricht 5 von 11
ToanDN
als Antwort auf: naomi2BHGT

Do you want to apply the same scope box to the entire view or just the linked model in the view?

Nachricht 6 von 11
naomi2BHGT
als Antwort auf: ToanDN

I want to just be able to isolate a view in the linked model. Or would I have to just use visibility graphics for it.
Nachricht 7 von 11
ToanDN
als Antwort auf: naomi2BHGT


@naomi2BHGT wrote:
I want to just be able to isolate a view in the linked model. Or would I have to just use visibility graphics for it.

That is understood.  Are you okay with your view also being cropped the same way?

Nachricht 8 von 11
naomi2BHGT
als Antwort auf: ToanDN

Do you mean the entire floor view of the new project? If so, then no just for the linked model. If actually using a scope box changes more than just the linked model, then I may just have to use visibility graphics for that view.
Nachricht 9 von 11
ToanDN
als Antwort auf: naomi2BHGT


@naomi2BHGT wrote:
Do you mean the entire floor view of the new project? If so, then no just for the linked model. If actually using a scope box changes more than just the linked model, then I may just have to use visibility graphics for that view.

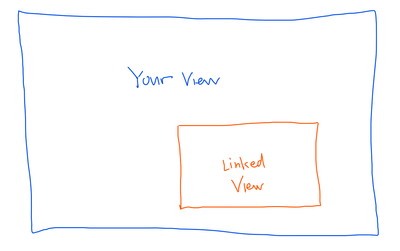

So you want something like this?






Nachricht 10 von 11
naomi2BHGT
als Antwort auf: ToanDN

Yes
Nachricht 11 von 11
ToanDN
als Antwort auf: naomi2BHGT


@naomi2BHGT wrote:
Yes

Then you need to overlay two views with different scope boxes, or different view crop regions on sheet.
