View material in floor plans

Hello, I have tried everything as an attachment in the image and I can not make several families in plan, see the corresponding material.

I appreciate your help.




8 ANTWORTEN 8
Nachricht 2 von 9
ToanDN
als Antwort auf: a.mikacic

Option 1: show family materials in true floor plan views:



- edit the family > open a 3D view > select 3d elements > set to be visible for Plan/RCP at all detail levels (fine, medium, coarse)

- go to a plan view > select any 2d masking / filled regions > set to be invisible



Option 2: create 3d top views in lieu of floor plans and the materials will show without editing the families

Nachricht 3 von 9
syman2000
als Antwort auf: a.mikacic

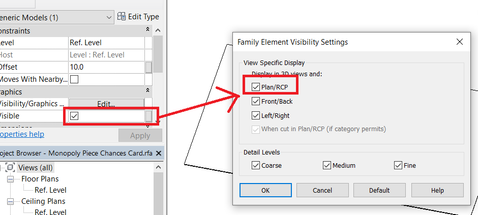

Your toilet family has 2d lines and masking. This will not the material. So you have to edit the family, Remove those lines and masking region, and set the 3d model to show on plan/RCP






Check out my Revit youtube channel - https://www.youtube.com/user/scourdx
Nachricht 4 von 9
chubbard
als Antwort auf: a.mikacic

or If you need the family to show as linework for typical drawings AND show materials use the fine LOD to turn off the symbolic lines and masking region, and make sure the 3D elements are set to visible in that LOD.

Also consider editing your families that would be used in this type of view to not mask. It looks weird with the white objects on colored floors etc. We did this log ago for that very reason.

Nachricht 5 von 9
a.mikacic
als Antwort auf: ToanDN

Thanks for the prompt reply, but unfortunately it did not work, I attach a file.

Nachricht 6 von 9
a.mikacic
als Antwort auf: syman2000

Thanks for the prompt reply, but sadly it didn't work, I attached the file in the post
Nachricht 7 von 9
a.mikacic
als Antwort auf: chubbard

Thanks for the prompt reply, but sadly it didn't work, I attached the file in the post

Nachricht 8 von 9
RDAOU
als Antwort auf: a.mikacic

@a.mikacic



Depends on the family...Table, chairs, sofas, Toilet seat for instance:

  1. Edit the family
  2. in Plan >>> Enable Preview
  3. Select and delete the Detail item and symbolic lines
  4. in 3D view >> Select the geometry  and make it visible in Plan/RCP
  5. Reload into model and overwrite

Fix Furniture.gif



Fix Furniture1.gif



Fix Furniture3.gif



Alternatively...If you need a rendered plan view with materials and you do not want to go through all of the above, simply use the 3D view and orient it to a Plan view






YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION


Nachricht 9 von 9
a.mikacic
als Antwort auf: RDAOU

Thank you very much for the explanation, I did not know how to find the region mask.
