Unable to view object in Ref. Level

1 ANTWORT 1
GELÖST
Antworten
Nachricht 1 von 2
KirkLB
1140 Aufrufe, 1 Antwort

Unable to view object in Ref. Level

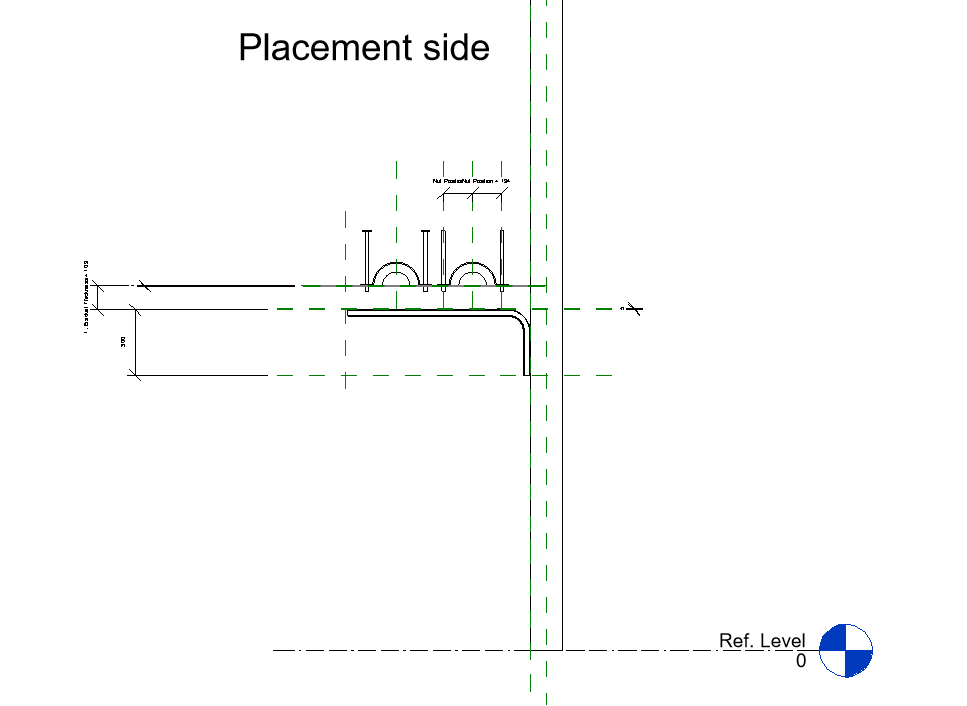

I am working in Revit LT 2020 where I am trying to modify a family. When the family is in 3D view I can see the object I am looking for but when I go to the Ref. Level I cannot see it. I can hoover over the object and it will and I can see the outline of it. When I load it into my drawing it is the same thing. I can see it in 3D but not in Plan view. What do I need to do to be able to see it in Plan view?



Thank you for your help.

1 ANTWORT 1
Nachricht 2 von 2
RDAOU
als Antwort auf: KirkLB

@KirkLB



It is modeled to show different detail item in plan view or to show different detail levels when u change view from course to medium or fine...try any of the following



  1. In the project try to change the view to Medium/Fine
  2. In the family
    • delete the detail item or masking region in plan view
    • In 3D select the 3D objects >> from the ribbon open Visibility Settings >> check the box for Plan/RFC



YOUTUBE | BIM | COMPUTATIONAL DESIGN | PARAMETRIC DESIGN | GENERATIVE DESIGN | VISUAL PROGRAMMING
If you find this reply helpful kindly hit the LIKE BUTTON and if applicable please ACCEPT AS SOLUTION
