Unable to dimension to some wall cores

13 ANTWORTEN 13
Antworten
Nachricht 1 von 14
DParkRMAK
1069 Aufrufe, 13 Antworten

Unable to dimension to some wall cores

Why am I not able to dimension to some wall cores but I can dimension to others. Tab select does nothing. I can only select core or outside face of the wall.

This is a callout enlarged view.  I can dimension the core with parts turned on but I don't want to use parts.



13 ANTWORTEN 13
Nachricht 2 von 14
barthbradley
als Antwort auf: DParkRMAK

Is the wall actually a compound-layered wall type with a core?  Are the core edges visible in view?  They wouldn't be if the Detail Level was set to Coarse.

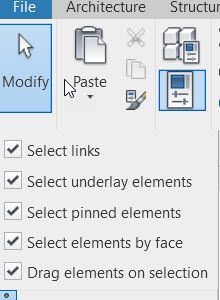

...one more.  Are all these checkboxes checked?






...another one:



Are you using your TAB Key (e.g. TAB-Selecting)?

Nachricht 3 von 14
barthbradley
als Antwort auf: DParkRMAK
Nachricht 4 von 14
barthbradley
als Antwort auf: DParkRMAK

Ah! I bet I know what you are talking about.  Wall Wraps. Right? No can do in Revit.  You'll need to draw and pull your dimensions from Ref. Planes.

Nachricht 5 von 14
ToanDN
als Antwort auf: DParkRMAK

Is it a specific wall type or just random?

also @barthbradley edit you post quickly before someone betting against it

Nachricht 6 von 14
barthbradley
als Antwort auf: ToanDN

Huh, @ToanDN? What did I say that was inaccurate?  I'll be happy to just own it. No need to cover my tracks.

Nachricht 7 von 14
ToanDN
als Antwort auf: barthbradley

It would be a good guess until OP said if he created parts he could dimension just fine. Wrapping don't translate to parts.
Nachricht 8 von 14
barthbradley
als Antwort auf: ToanDN


@ToanDN wrote:
It would be a good guess until OP said if he created parts he could dimension just fine. Wrapping don't translate to parts.



Huh? I'm not following you. Wrapping doesn't translate into Parts.



@DParkRMAK : Was I right?  Wall Wraps?

Nachricht 9 von 14
barthbradley
als Antwort auf: ToanDN

@ToanDN : is this OP ever going to respond? I'm on pins and needles here, How about you? I got money riding on this one.

Nachricht 10 von 14
DParkRMAK
als Antwort auf: DParkRMAK

Sorry for taking so long to reply. Neverending deadlines.



The issue turned out to be that the common edges were turned off. Once I turned that back on it worked as it should.





Nachricht 11 von 14
barthbradley
als Antwort auf: DParkRMAK

So you are saying that some Walls in the View were showing Common Edges while others were not?  That's possible? How do you do that? Turn a particular Wall's Common Edges off and on in a View?

Nachricht 12 von 14
DParkRMAK
als Antwort auf: barthbradley

That is a good point. I don't really know what the issue was. The solution was to turn on common edges.

That was 2 submittals ago I don't remember.

Nachricht 13 von 14
ennujozlagam
als Antwort auf: DParkRMAK

it could be the setting in your detail level and visual style to turn on the edges? thanks





Remember : without the difficult times in your LIFE, you wouldn't be who you are today. Be grateful for the good and the bad. ANGER doesn't solve anything. It builds nothing, but it can destroy everything...
Please mark this response as "Accept as Solution" if it answers your question. Kudos gladly accepted.
Nachricht 14 von 14
DParkRMAK
als Antwort auf: ennujozlagam

The detail level was set to fine.
