trusses

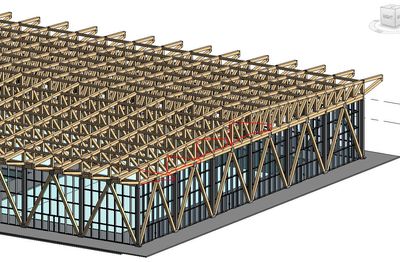

Hi, just just wondering if anyone can suggest a way Capture.JPG to create  trusses like the ones marked with red?

Cheers,

Mike

Beschriftungen (1)
8 ANTWORTEN 8
Nachricht 2 von 9
barthbradley
als Antwort auf: s3687147

Hard to tell what you are pointing out. Looks like you are pointing to webs. which is what you would use in the Truss Family Template.  Can you post some other pictures.  BTW, are you specifically referring to a Truss Family?  Or are you looking for an alternative?

Nachricht 3 von 9
ToanDN
als Antwort auf: s3687147

It is the same truss as what you already have without the overhang and with fewer bays.
Nachricht 4 von 9
s3687147
als Antwort auf: barthbradley

Hi B, thanks for your response. i am trying to create the triangular rafters/trusses shown with the red hand drawn lines. i tried to create them with the truss family but they are impossible to align and move around correctly.  i am happy to use any method to create them, doesn't need to be necessary a truss family. I'm extremely open to any alternatives.

cheers.

Nachricht 5 von 9
s3687147
als Antwort auf: barthbradley

Hi B, thanks for your response. i am trying to create the triangular rafters/trusses shown with the red hand drawn lines. i tried to create them with the truss family but they are impossible to align and move around correctly.  i am happy to use any method to create them, doesn't need to be necessary a truss family. I'm extremely open to any alternatives.

cheers.

Nachricht 6 von 9
s3687147
als Antwort auf: barthbradley

Hi B, thanks for your response. i am trying to create the triangular rafters/trusses shown with the red hand drawn lines. i tried to create them with the truss family but they are impossible to align and move around correctly.  i am happy to use any method to create them, doesn't need to be necessary a truss family. I'm extremely open to any alternatives.

cheers.

Tags (1)
Nachricht 7 von 9
barthbradley
als Antwort auf: s3687147

I'd probably use Edit Profile.  Can you post the file?



Edit Profile Truss.png



Nachricht 8 von 9
ToanDN
als Antwort auf: s3687147

Just use a standard Pratt Flat Truss, change the Max Panel Width in the project, and Attach it to a Roof to get the slope of the top chords.  If you don't have a roof then you can Edit profile and manually draw the sloped top chords.






Nachricht 9 von 9
ennujozlagam
als Antwort auf: s3687147

you wrote:

Hi B, thanks for your response. i am trying to create the triangular rafters/trusses shown with the red hand drawn lines. i tried to create them with the truss family but they are impossible to align and move around correctly.  i am happy to use any method to create them, doesn't need to be necessary a truss family. I'm extremely open to any alternatives.

cheers.



you can try model in-place extrusion or sweep. extrusion you can join geometry. thanks
