Toposolid Triangulation Edges Visible on Vector Print (Revit 2024)

3 ANTWORTEN 3
Antworten
Nachricht 1 von 4
jvolanski
240 Aufrufe, 3 Antworten

Toposolid Triangulation Edges Visible on Vector Print (Revit 2024)

When printing a presentation document set, all of the graphic fills on the toposolid show the triangulation edges, and it looks horrible. (See attached image) I tried several workarounds, but the only one that works is to raster print and then collate the affected sheets into the set after.



Does anyone else have this issue? This problem never occurred anytime I printed a similar job from earlier versions of Revit with toposurfaces. Is there a solution in the works to fix toposolid vector printing graphics? It is frustrating to have to raster print and collate any time I plot.



3 ANTWORTEN 3
Nachricht 2 von 4
Simon_Weel
als Antwort auf: jvolanski

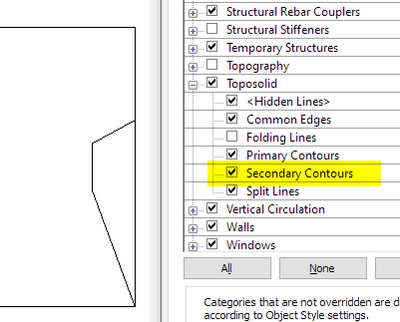

Visibility settings:











Nachricht 3 von 4
jvolanski
als Antwort auf: Simon_Weel

I already tried this. My issue is about triangulation edges, not contour lines. Un-checking the box you indicate has no impact whatsoever on triangulation edges being visible.

Nachricht 4 von 4
jvolanski
als Antwort auf: jvolanski

For the record, the attached image is what the vector print looks like when you uncheck all sub-categories under toposolid:
