Toposolid PDF Export Triangulation Visible

2 ANTWORTEN 2
Antworten
Nachricht 1 von 3
Joey_JM
226 Aufrufe, 2 Antworten

Toposolid PDF Export Triangulation Visible

When creating a Toposolid with materials that contain solid surface patterns, colour can now be included in a hidden line view such as a site plan.



Previously, this wasn't possible with Toposurfaces. However, when exporting to pdf, the surface triangulation is visible. It is quite distracting for on-screen presentations.



Anyone else experience this? Any suggestions for Vector-only output? ...and without post-production outside Revit

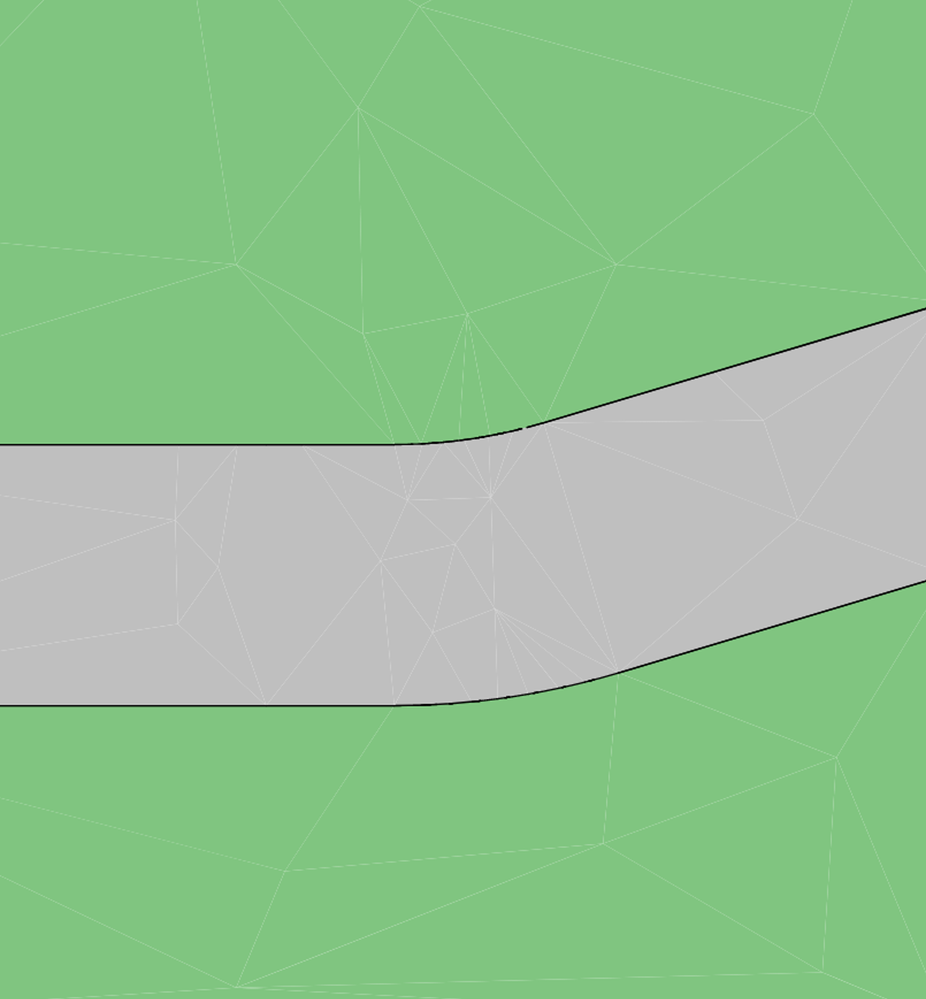

Toposolid PDF Export_.png













2 ANTWORTEN 2
Nachricht 2 von 3
barthbradley
als Antwort auf: Joey_JM
Nachricht 3 von 3
Joey_JM
als Antwort auf: Joey_JM

Thanks @barthbradley, missed that post. I had searched for "toposolid" and "triangulation" but not "folding lines". Will continue discussion there.
