Toposolid in Family Won't Load to Project

5 ANTWORTEN 5
Antworten
Nachricht 1 von 6
MadoreJacob
270 Aufrufe, 5 Antworten

Toposolid in Family Won't Load to Project

Hey guys,



I created a toposolid in a Family (of a ramp) with concrete jersey barriers on it, see below (plan view):




When I go to load this Family into a project, the toposolid is excluded from the load and only the concrete blocks appear:




Naturally, my toposolid visibility is on in the project. I'm not familiar with how the toposolid families work, does anyone have an idea why it wouldn't be appearing in the project?

5 ANTWORTEN 5
Nachricht 2 von 6
barthbradley
als Antwort auf: MadoreJacob

How did you model what you are calling the "Toposolid" in this loadable Family? Also, what is the Category of this loadable Family?

Nachricht 3 von 6
barthbradley
als Antwort auf: MadoreJacob


@MadoreJacob wrote:



I'm not familiar with how the toposolid families work, does anyone have an idea why it wouldn't be appearing in the project?




This question is a little odd. There is no LOADABLE Family "Toposolid" Category. Toposolids are Project constructs.



Now, regarding the geometry you created in your loadable Family,  there are a number of reasons why it might not be showing up in the Project environment.



One of these 33 may apply:



https://www.ideateinc.com/blog/2013/01/missing-something-in-revit-view-33



If you can't figure it out, then post your Family (rfa) here and we'll tell you why that family geometry isn't showing up in the Project.





Nachricht 4 von 6
MadoreJacob
als Antwort auf: MadoreJacob

See attached, does not seem to be one of the issues in the link you sent.

Nachricht 5 von 6
barthbradley
als Antwort auf: MadoreJacob

Interesting. I've never seen a Family Template with a Toposolid Host?  I don't know how it's possible. I'm not even sure how you modeled and/or modified it.  Or is the Toposolid a nested Family?  Doesn't appear to be, but if it is, post that Family(rfa) here if you would please.



Regarding how to model this Toposolid in the Project Environment, I would Export it to DWG and then Insert the DWG (via Import CAD) into the Project and create a Toposolid from Import.

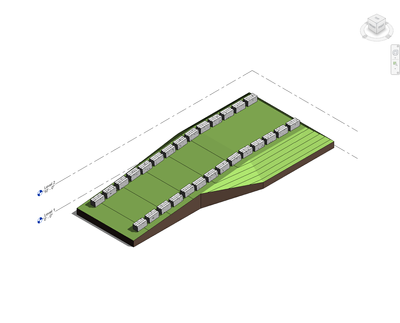

That's what I did here:



Toposolid in Family1.png

Toposolid in Family2.png



Nachricht 6 von 6
handjonathan
als Antwort auf: MadoreJacob

Hi @MadoreJacob

Thanks a lot for posting your question to the forums!   Has the solution suggested by @barthbradley helped with your issue?

We look forward to hearing back from you with more information so we can help you as a community! 



Jonathan Hand


Industry Community Manager | AEC (Architecture & Building)
